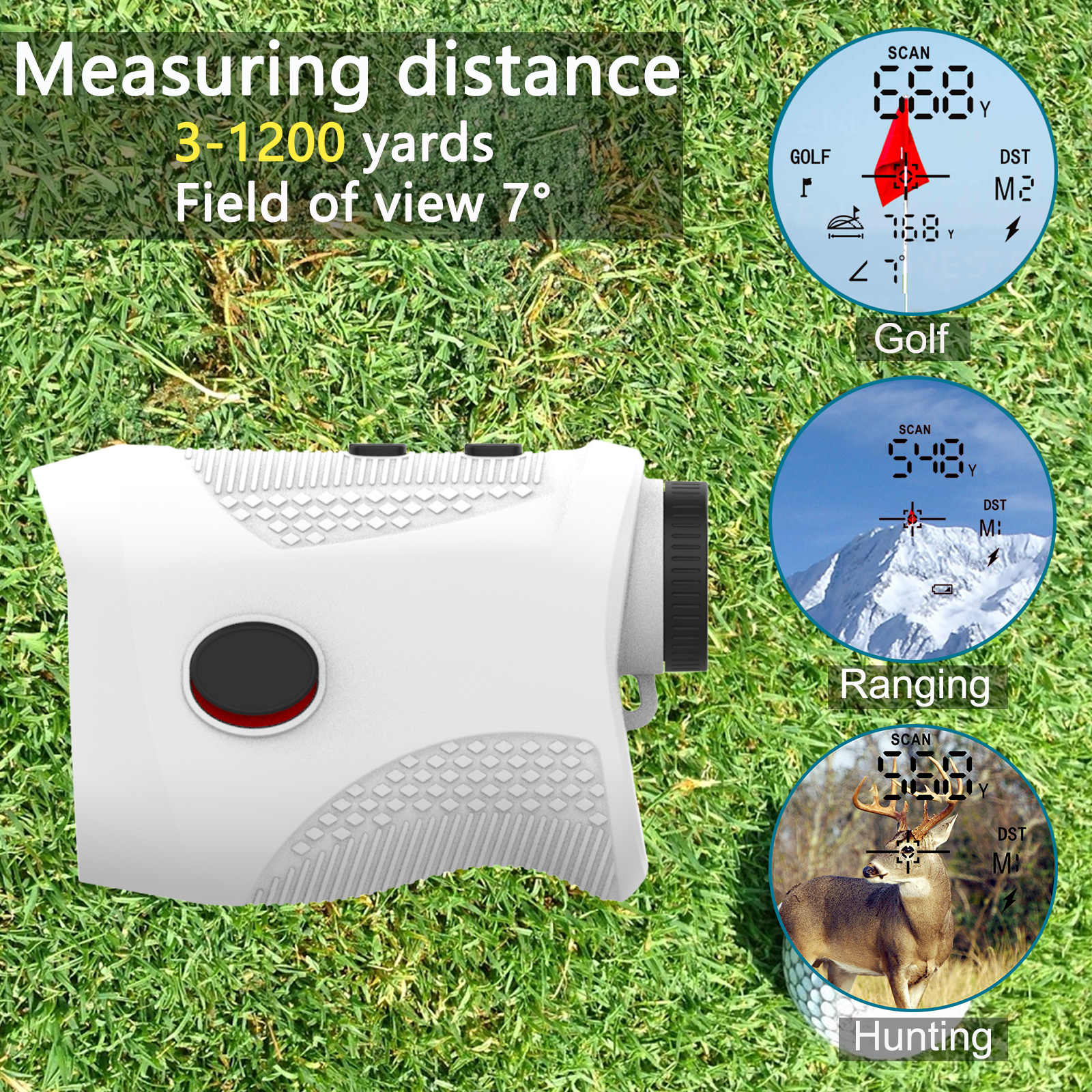

| Measuring range | 3-1200Y |
| Measurement accuracy | ±1M/Y |
| Speed range | 0-300Y |
| Speed accuracy | ±5Y |
| Laser wavelength | 905nm |
| Angle measurement range | ±45° |
| Laser Safety Standards | Class 1 |
| Measuring unit | M/Y |
| Gain | 6X |
| Objective lens aperture | 25mm |

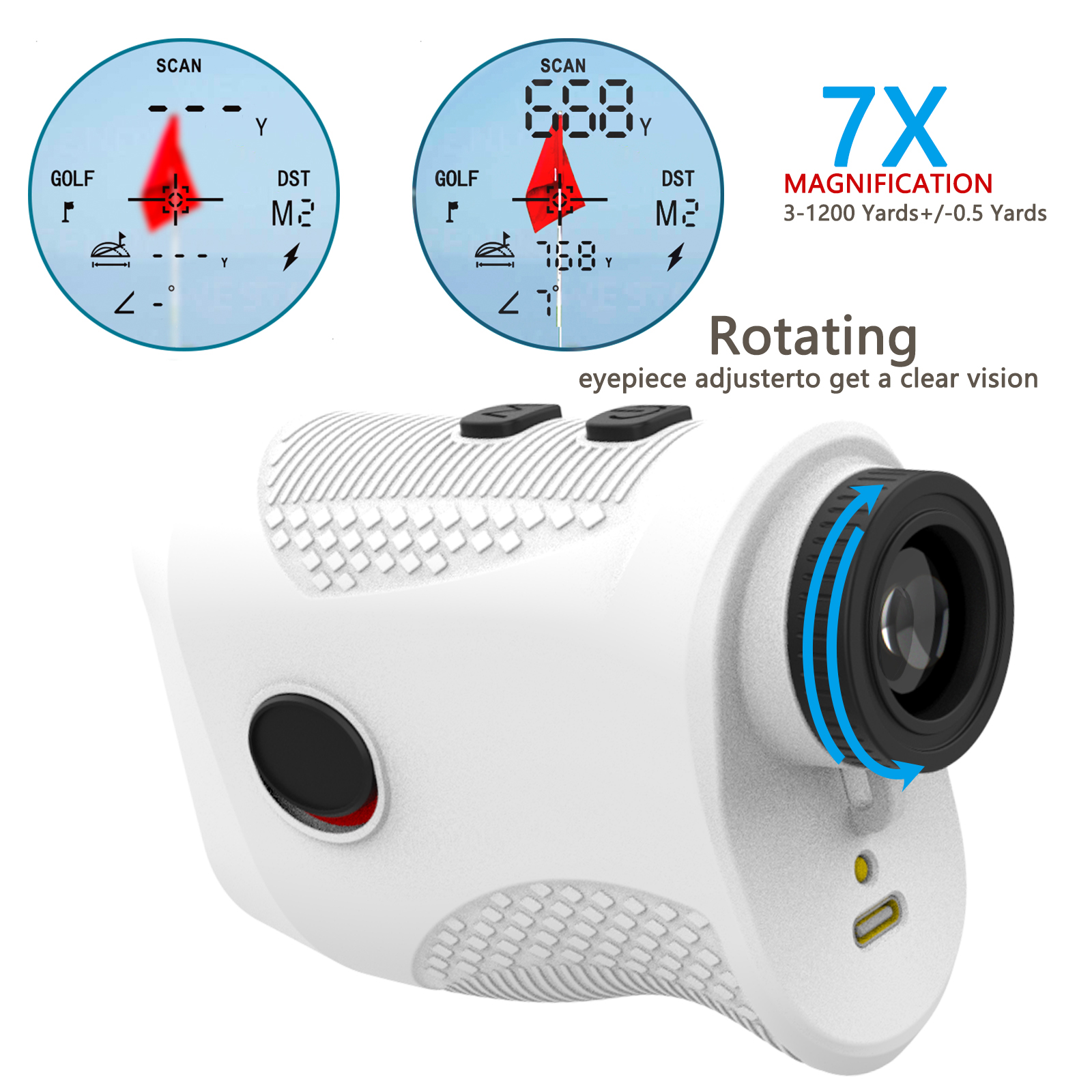

| Focus method | Manual focus |
| Lens material | Multilayer antireflection coating |
| Angle switch (incline switch) | Yes |
| Lock flagpole function | Yes |
| Operating temperature | -20℃~60℃ |
| Waterproof and dustproof | IPX4 |
| Magnet | Optional installation of magnetic suction function |

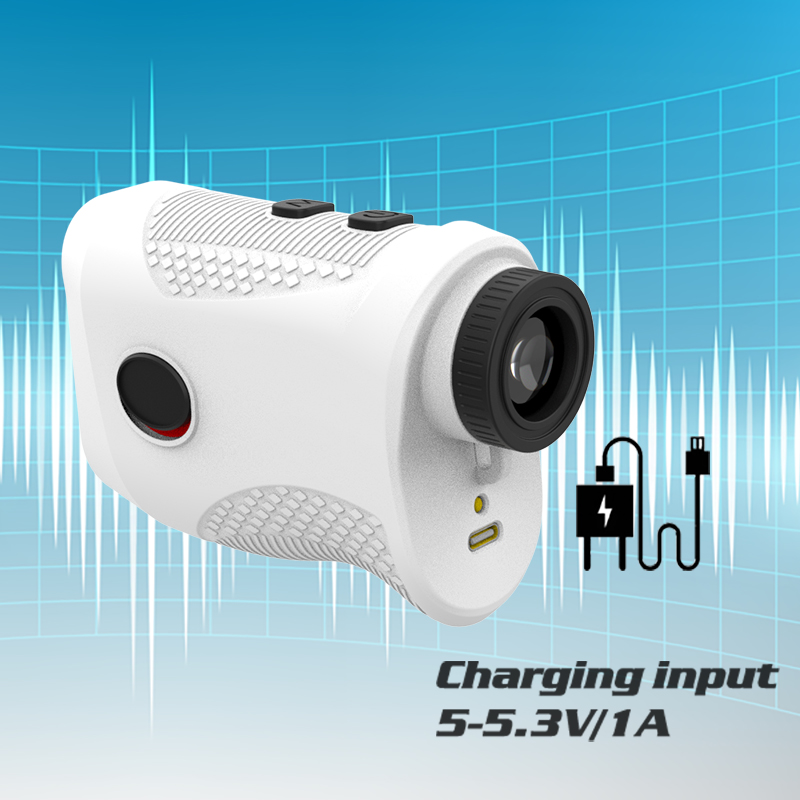

| Battery model | Built-in rechargeable lithium battery |
Range measurement; height measurement; speed measurement; angle measurement; continuous scanning range measurement; professional golf mode; slope trajectory compensation; flag lock function.
1. Press the power button for about 1 second to turn on the power.
2. If no button operation is performed within 10 seconds, the machine will automatically shut down.

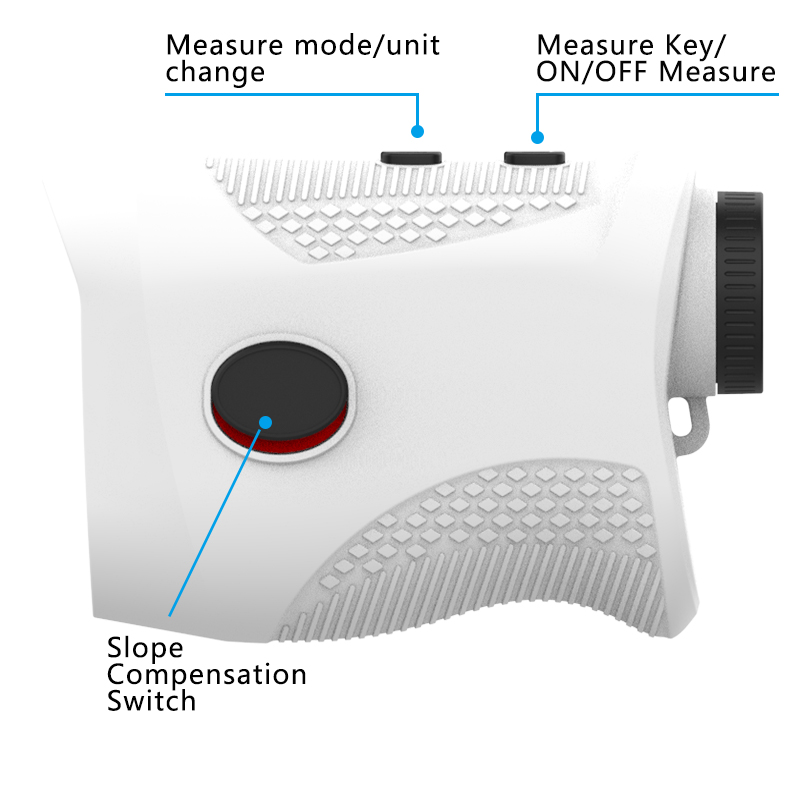

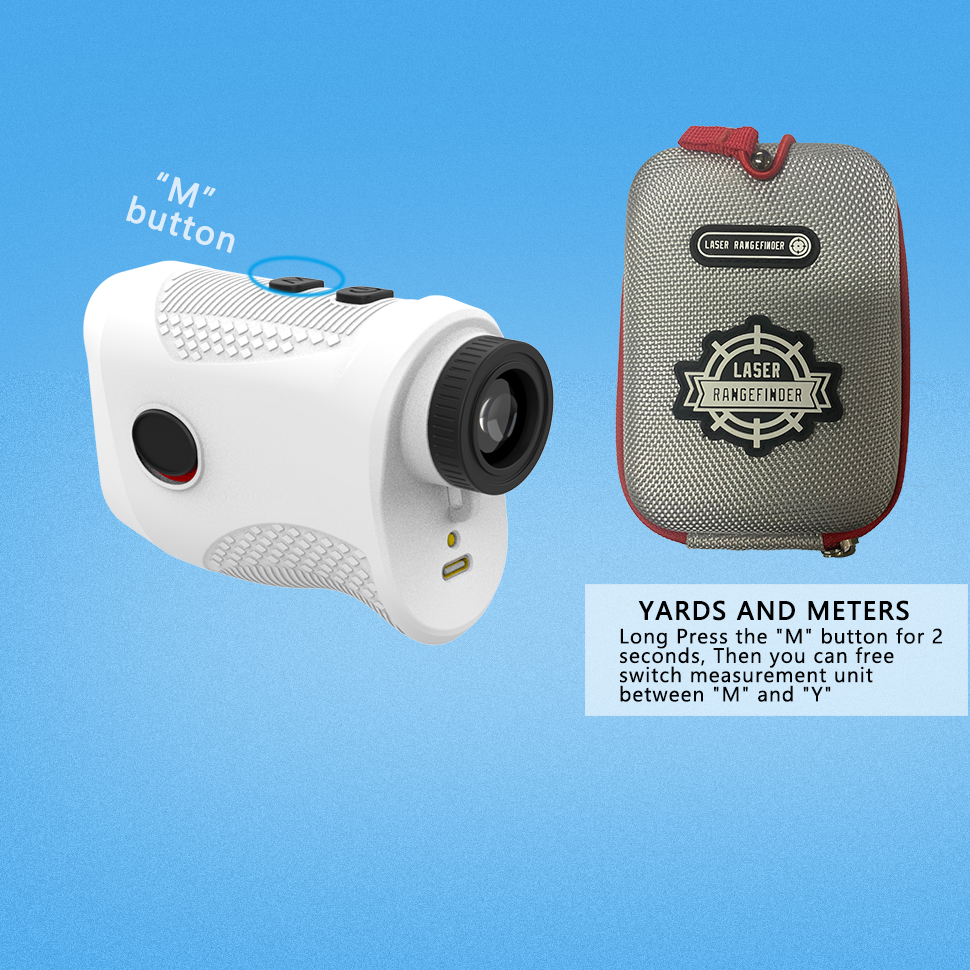

Long press the "M" key to switch the data unit meter (M) or yard (Y).
Short press the "M" key to switch mode M1 or mode M2.

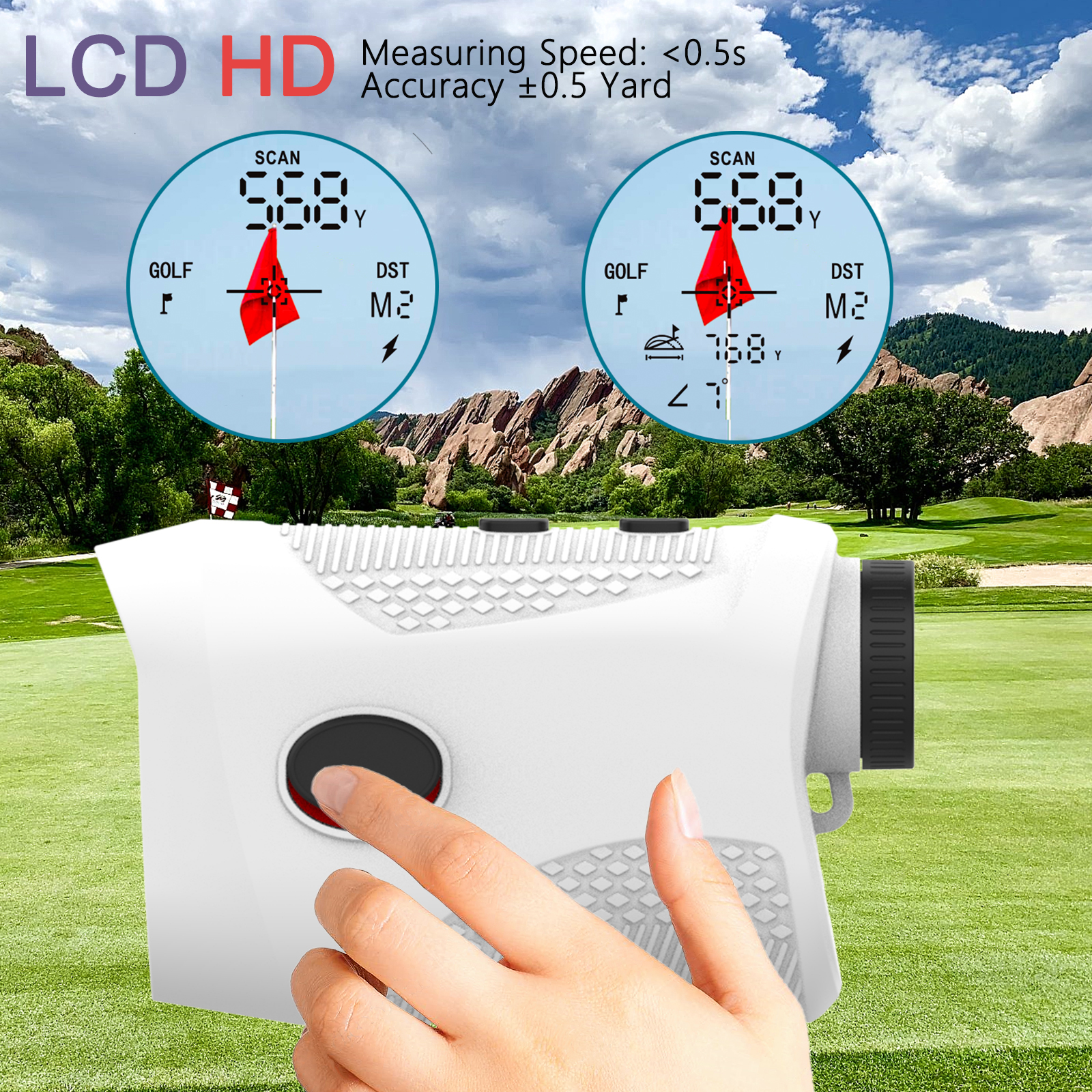

M1 Mode (Linear): Short press for single distance; long press for continuous scanning.

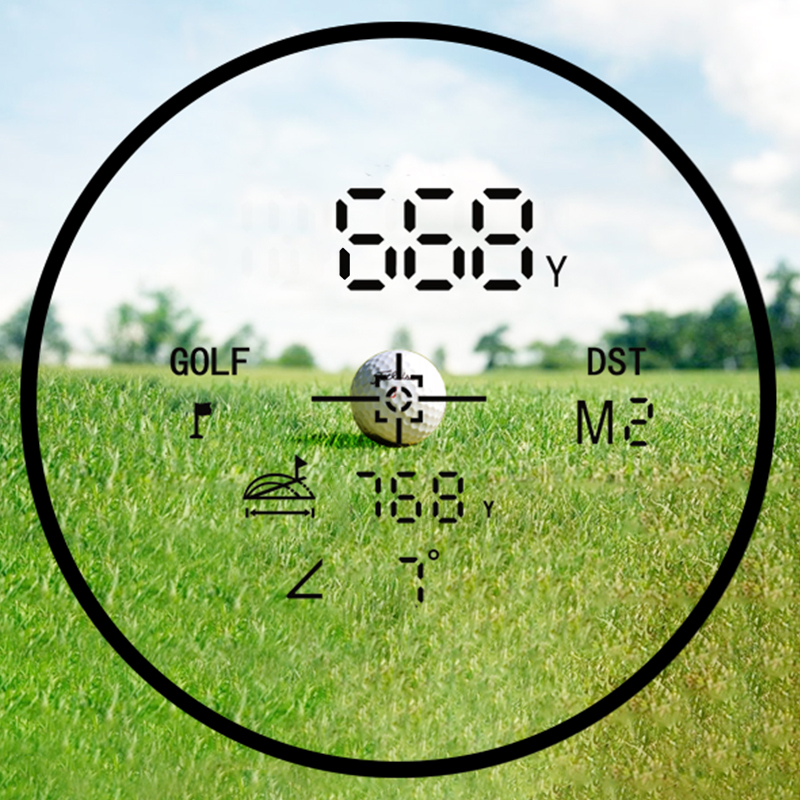

M2 Mode (Flagstick Lock): Aim at the flagpole or scan from behind to lock the nearest target. Vibration alerts when locked, and slope compensation distance is displayed.
M3 Mode (Speed): Align with the moving target and hold the power button to calculate speed.
