Industrial ultrasonic cleaning systems consist of an ultrasonic generator, a transducer, and a cleaning tank. The generator produces the ultrasonic signal and the transducer changes it to sound waves when it is immersed in the cleaning solution. Cavitation bubbles form in the low-pressure troughs of the sound waves and collapse in the high-pressure peaks. When a bubble collapses next to the surface to be cleaned, it releases a burst of energy that dislodges contaminants from the surface. The cleaning method is completely safe, environmentally friendly, and does not require the use of chemicals. A ten to twenty-minute cleaning time is often enough.
We have ultrasonic cleaners ranging from 0.8L to 30L capacity.
| Parameter | Details / Specification |
|---|---|

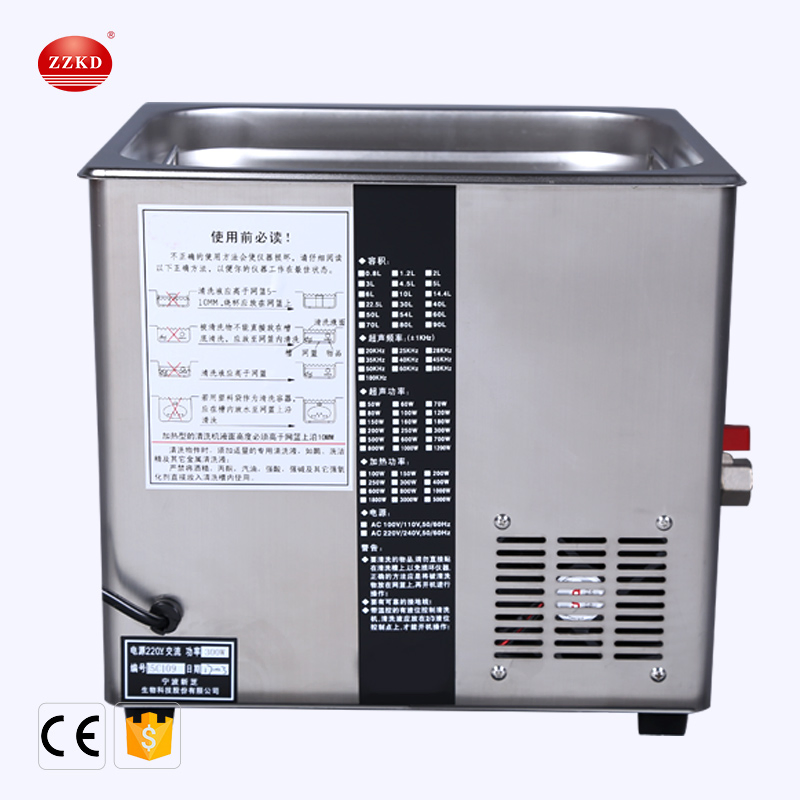

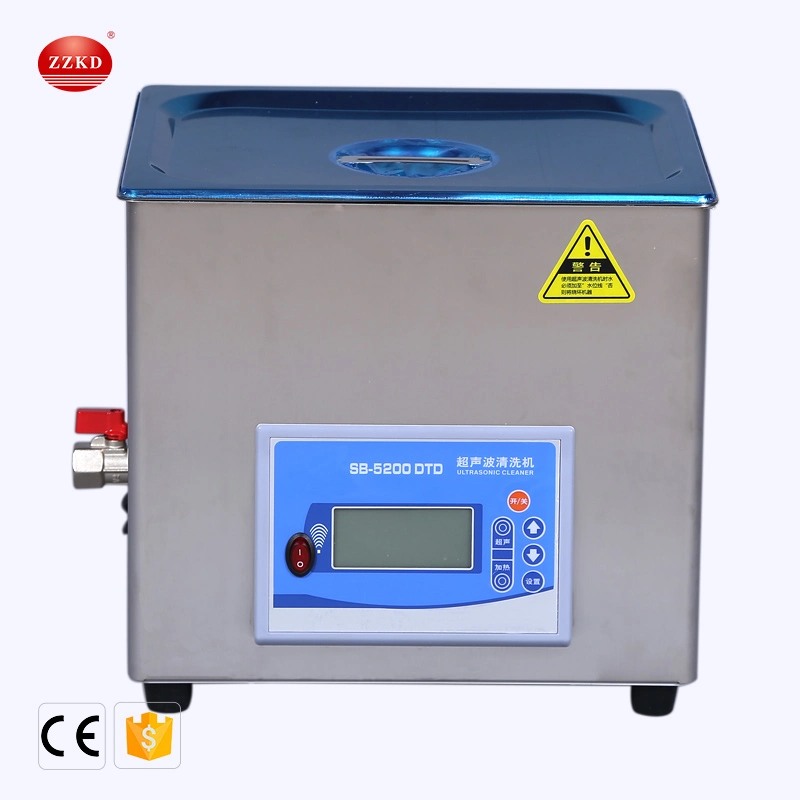

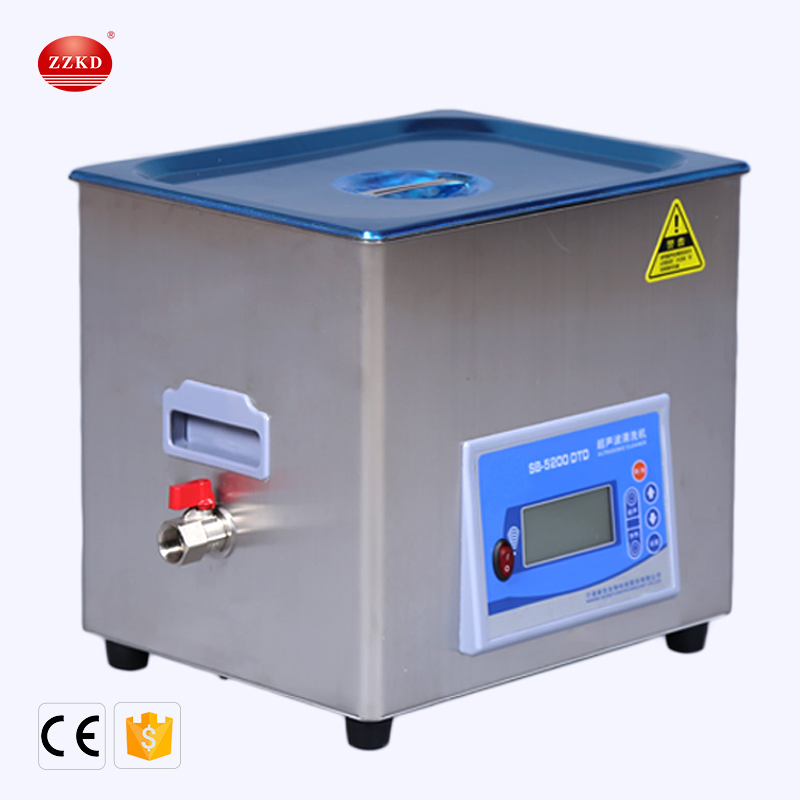

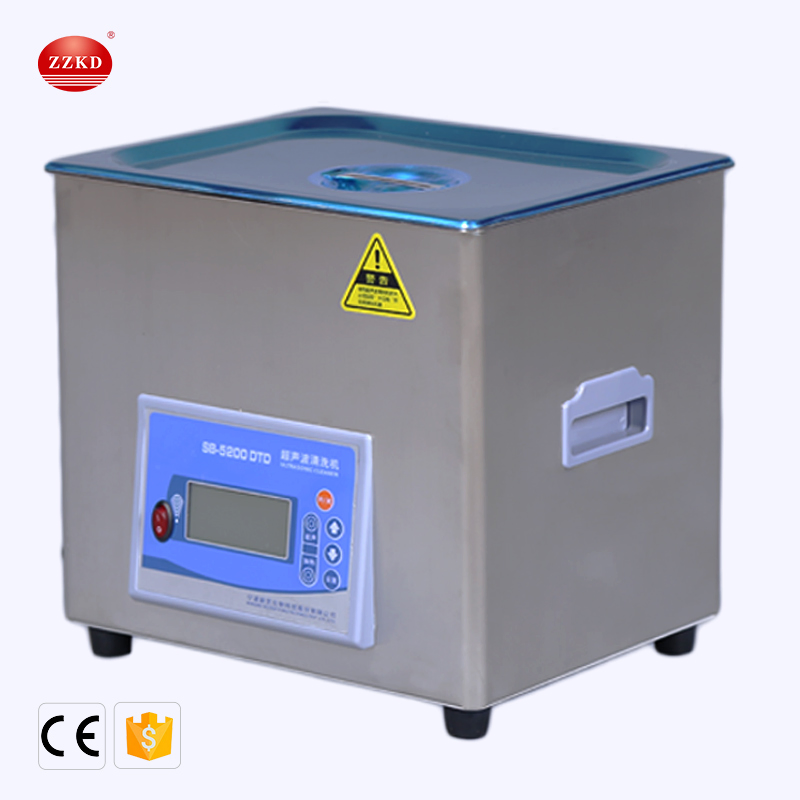

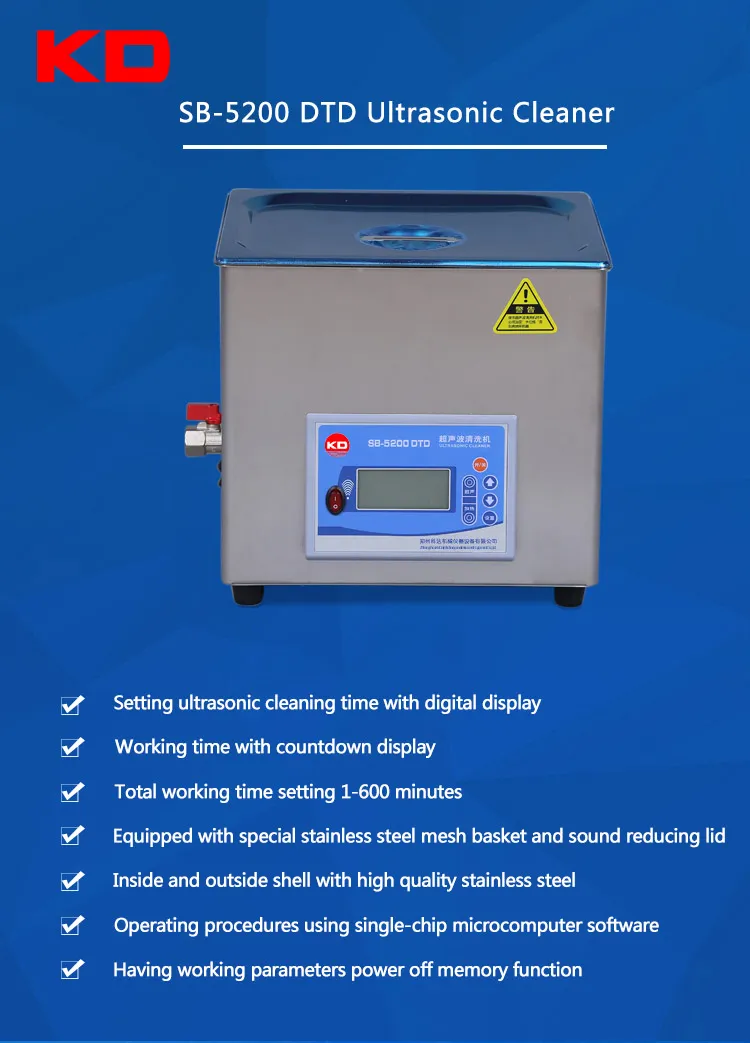

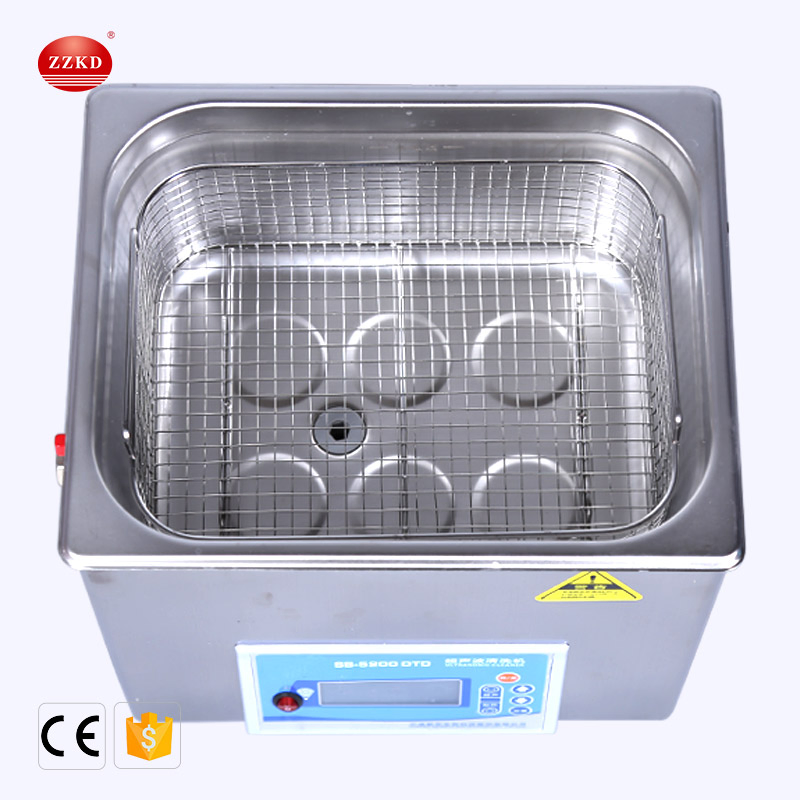

| Model | SB-5200D |
| Description | Ultrasonic Cleaner 10L |
| Voltage | AC100~120V, 60Hz / AC220~240V, 50Hz |
| Tank Material | Stainless Steel |
| Frequency | 40KHz |
| Ultrasonic Power | 300W |
| Heating Power | 250W |
| Tank Capacity | 10L |
| Tank Size | 300×240×150mm |
| Overall Size | 450×325×375mm |
| Cleaning Time | 0-600 minutes adjustable |
| Heating | 0-80ºC adjustable |
| Lid | Included |

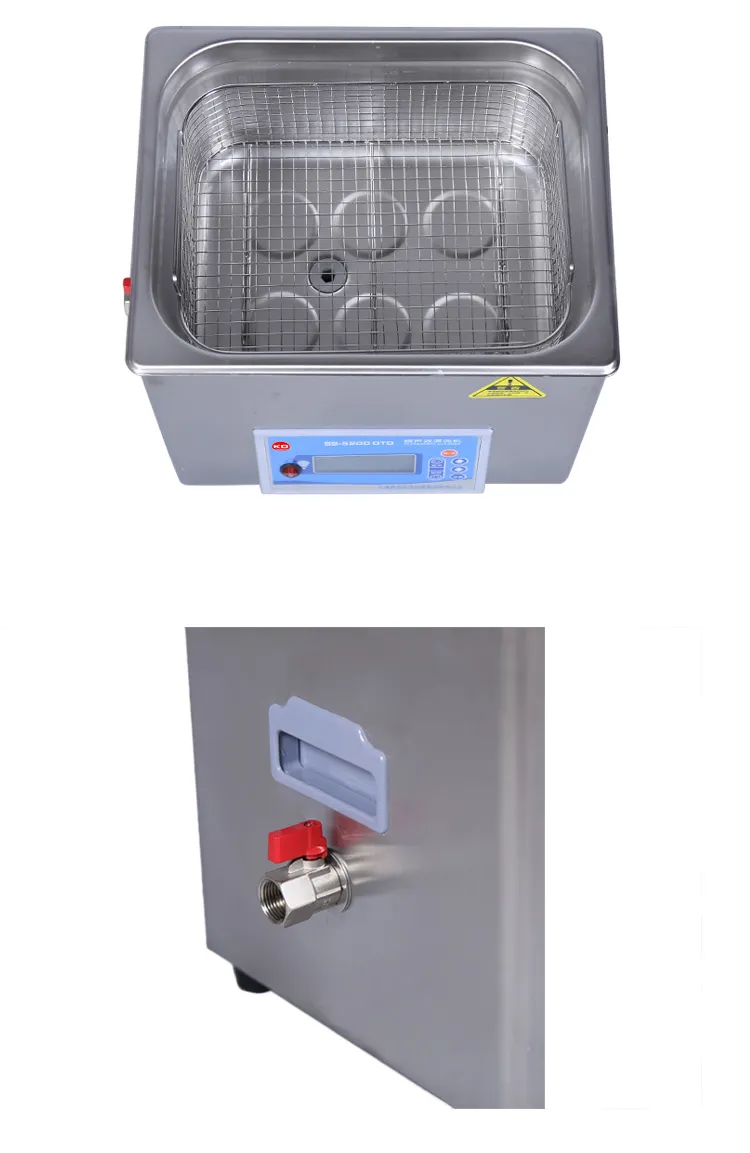

| Basket | Included |
| Shipping Method | Notes & Procedure |
|---|---|
| Express | Door-to-door service, highly convenient, no customs clearance or pick-up actions required. |
| By Air | Airport-to-airport transit. Requires customs clearance and local airport collection, which can be managed by a local shipping agent. |
| By Sea | Port-to-port shipping. Requires customs clearance and cargo collection at your local port, manageable via a local shipping agent. |
Online response service to address your technical consultation. Specialized support is provided to select the correct model based on applications and user requirements.
Offers structured pricing, volume discounts, flexible payment term setup, precise production schedules, and timing notifications during dispatch.
Includes a 1-year product warranty, lifetime maintenance support, free exchange for designated parts, remote technical consultation, installation reference materials, and long-term maintenance plans.
