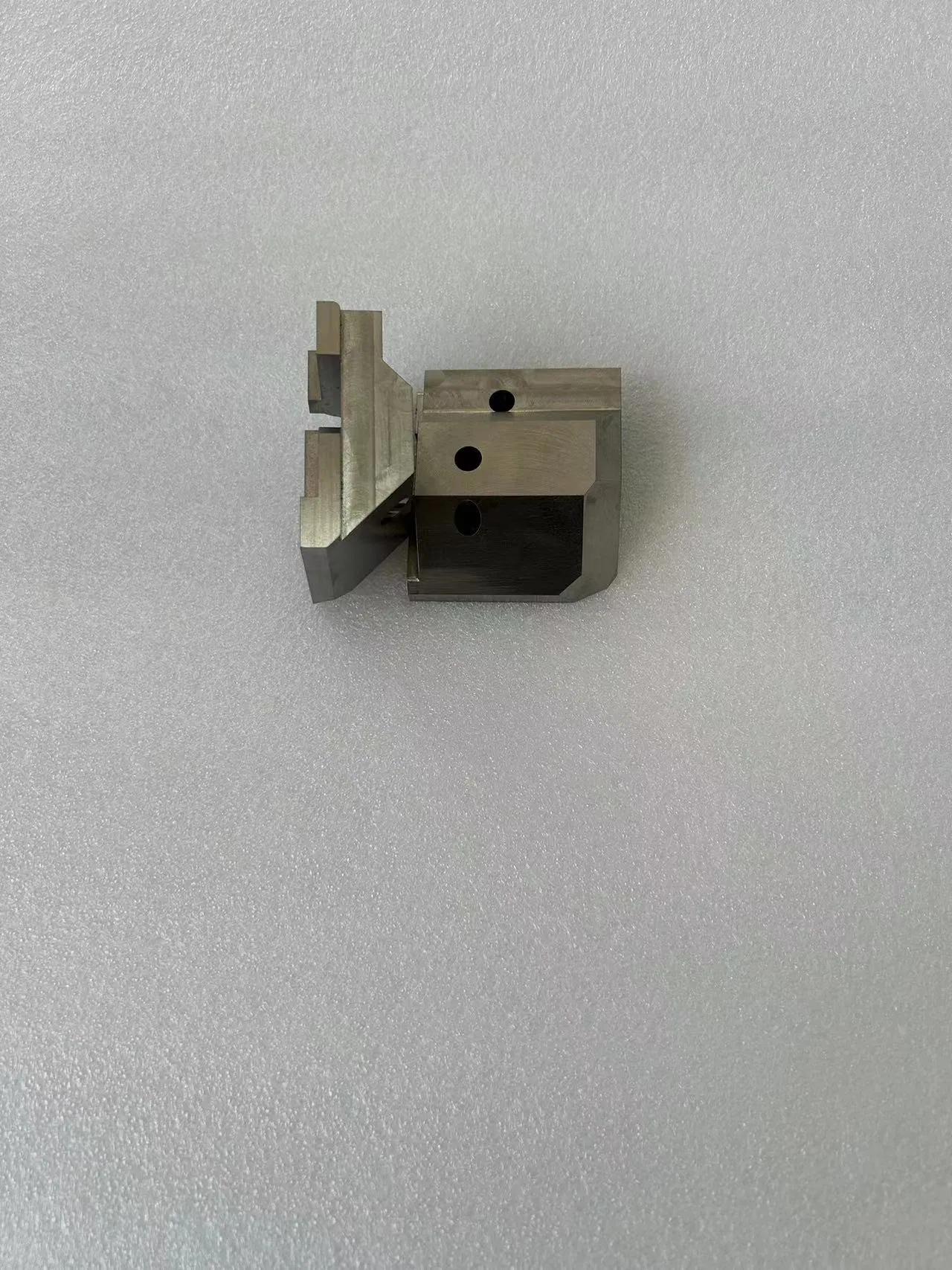

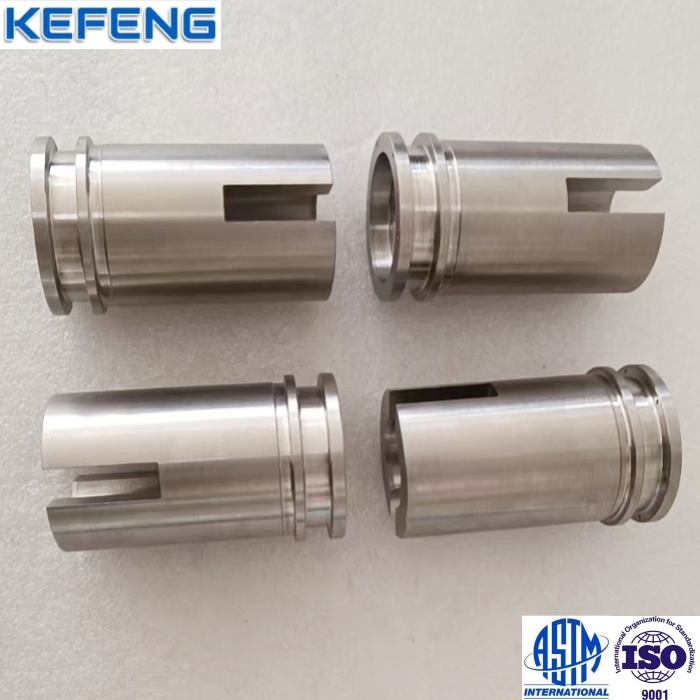

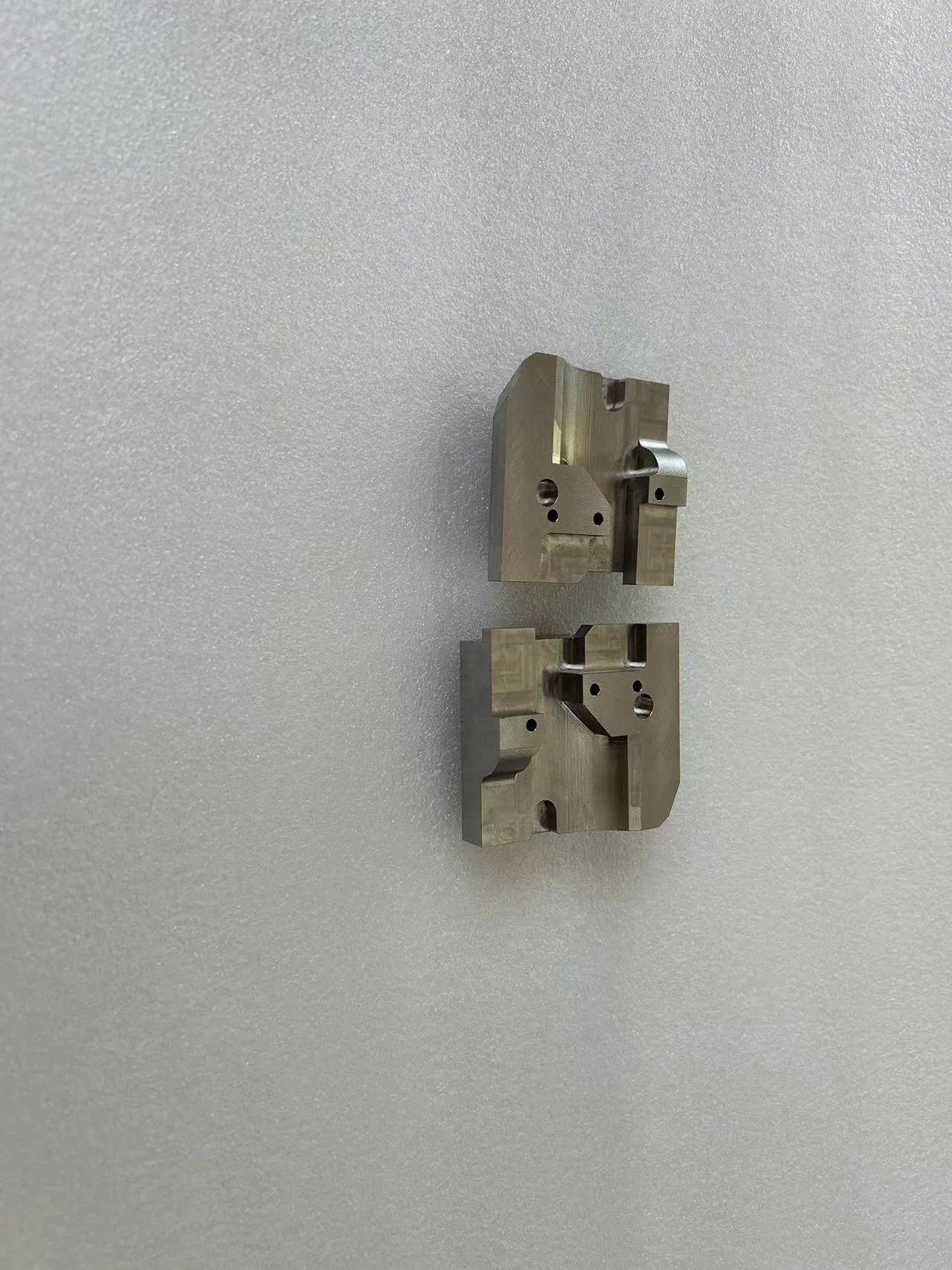

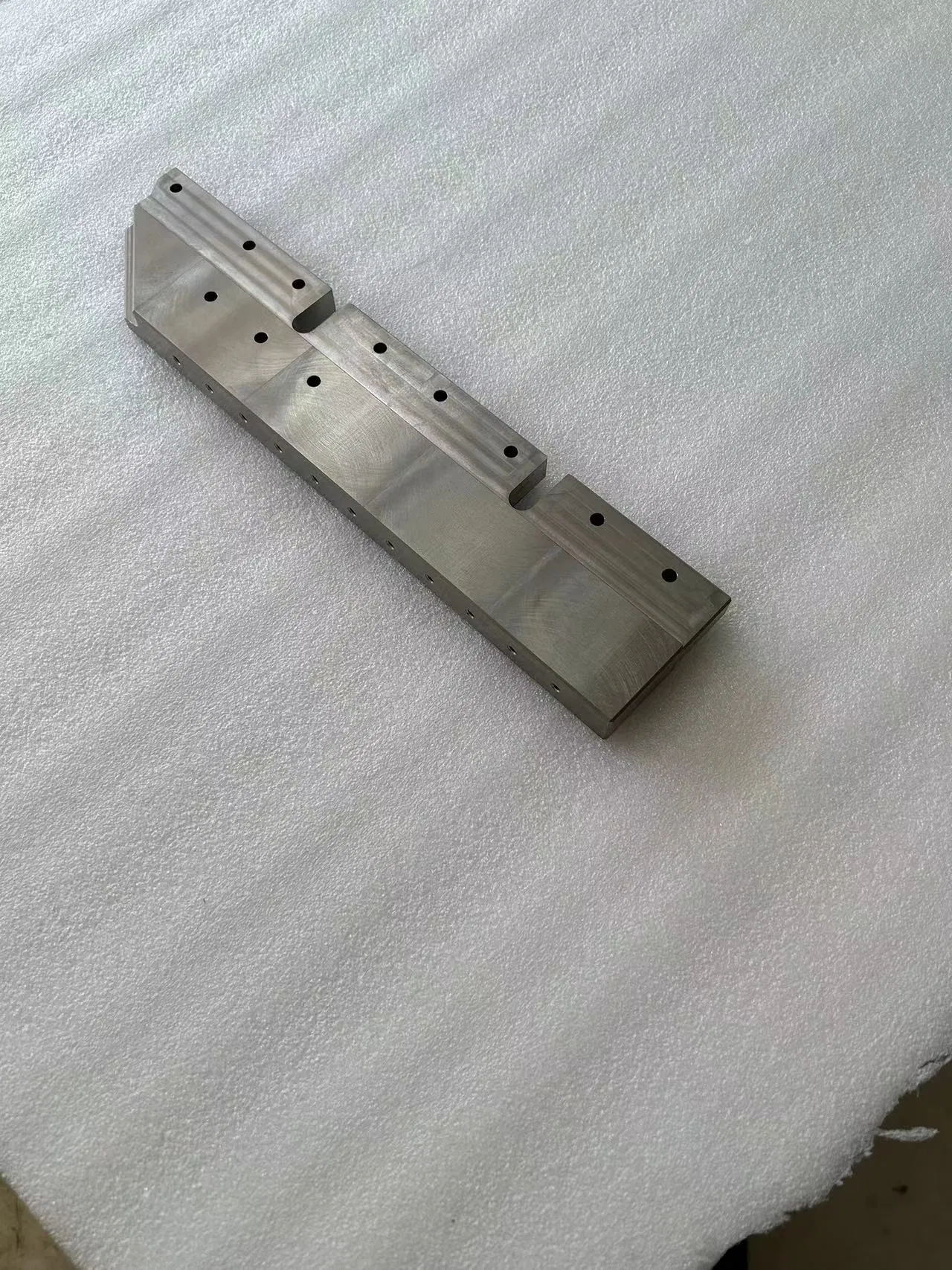

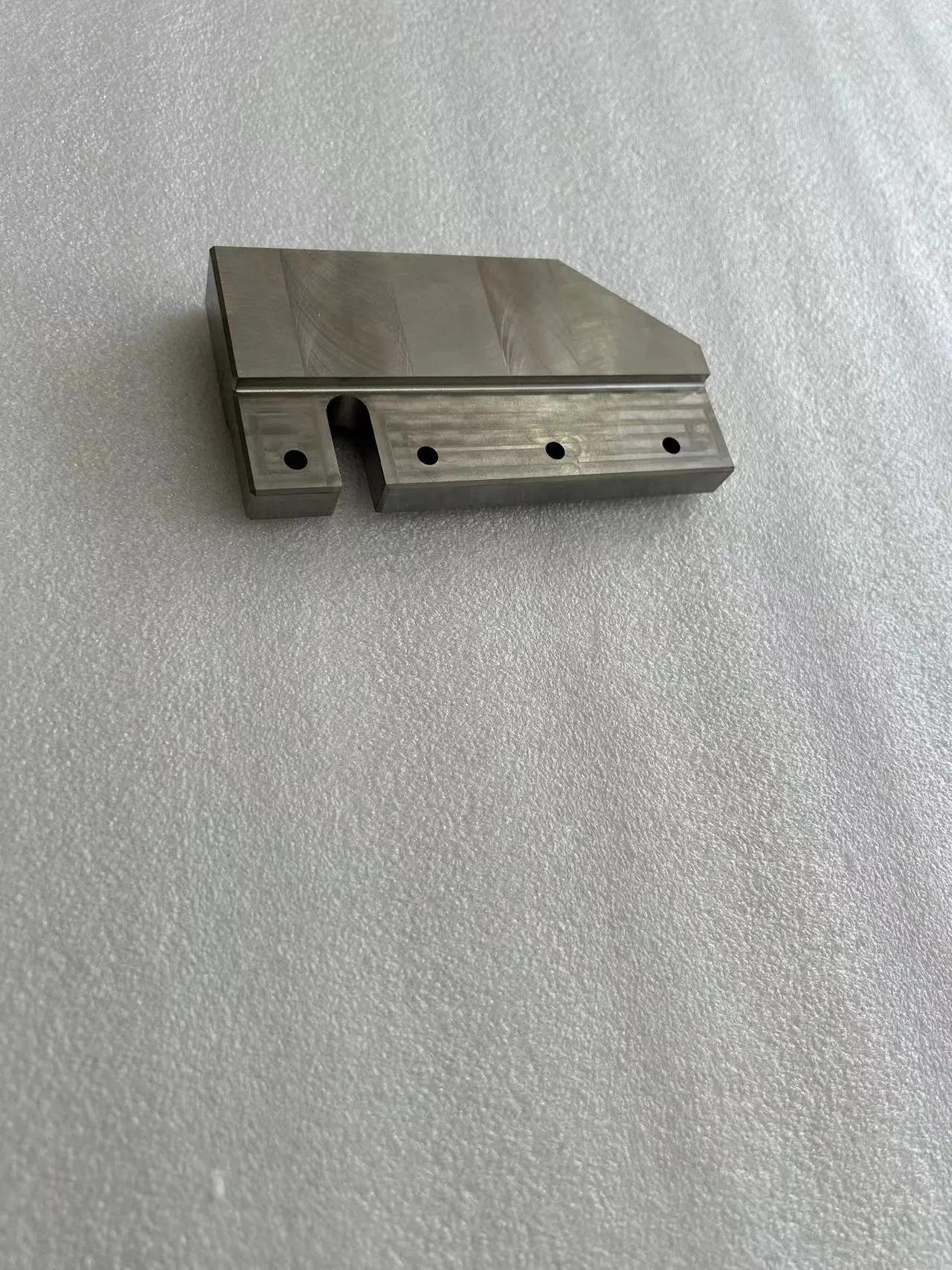

Custom Made Tungsten Alloy Counterweight Parts

Still deciding? Get samples of $ !
Request Sample

Product Description

📊 Basic Information
Model NO.
TC007
Purity
90%~97%
Alloy
Wnife Alloys or Wnicu Alloys
Shape
Customized
Type
Parts
Grade
90%-97%Wnife or 90%-97%Wnicu
Density G/Cc
16.85~18.85
State
Sinter, Vacuum, Forge
Property
Low Thermal Expansion
Other
High Melting Point
Quality
ASTM B777, Mil-T-21014, AMS 7725
Origin
China
HS Code
81019990
🏭 Professional Manufacturing

With an acknowledged fame as one of the Chinese most experienced and professional tungsten products manufacturer, we manufacture tungsten alloy parts and components to the superior specifications and quality standards, for which the process is ISO9001 certified and materials are SGS approved.

Tungsten Alloy Parts

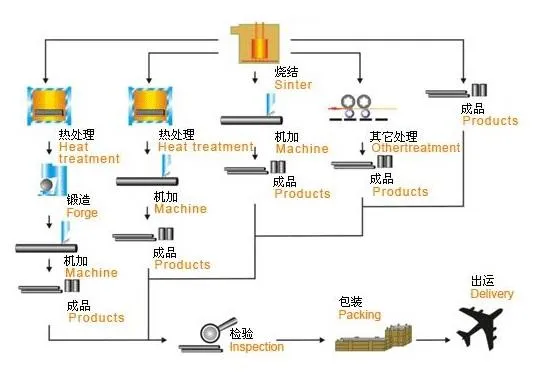

Tungsten Counterweight
🛠️ Product Description

Custom Made Tungsten Alloy Counterweight is a refractory metal alloy with a tungsten content exceeding 90%. These two-phase composites consist of W-Ni-Fe or W-Ni-Cu, creating a particularly high-density material. They are widely applied in aerospace and vehicle industries to create concentrated weights for limited spaces, balance control surfaces, and vibration absorption.

Key Characteristics:

Heavy tungsten alloy possess the highest melting point of all metals and is suitable for very high-temperature applications. It features a uniquely low coefficient of thermal expansion and a very high level of dimensional stability.

🚀 Main Applications

The high density of tungsten-based alloy counterweights greatly reduces physical assembly size, facilitating precise weight distribution and control mechanism sensitivity. Applications include:

  • Aerospace: Gyroscopes, propellers, helicopter blades, and avionics systems.
  • Automotive: Crankshaft and chassis counterweights for racing and heavy engines.
  • Sporting: Tungsten alloy darts, golf club weights.
  • Defense: Balance weights for missiles and helicopter rotors.
  • Other: Radiation shielding, containers for radioactive isotopes, and high-performance projectiles.
  • Optical Industry: Microscopes and precision measuring instruments.
📸 Detailed Gallery
Detailed Tungsten Photo 1

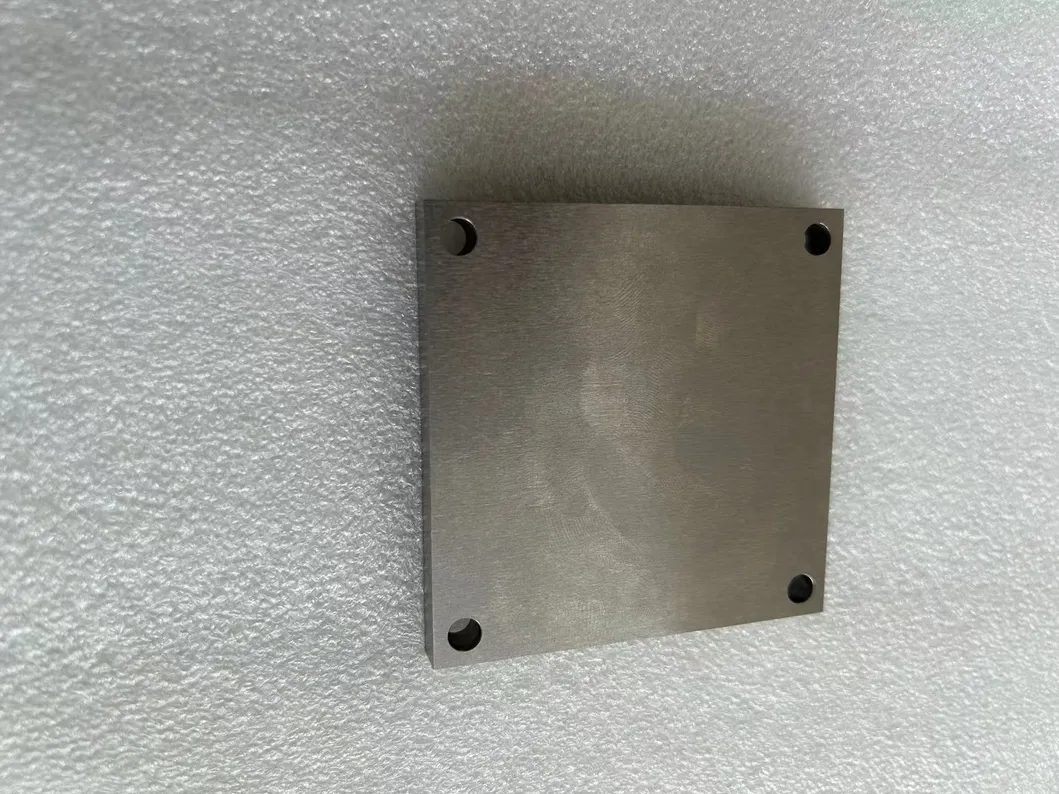

Detailed Tungsten Photo 2

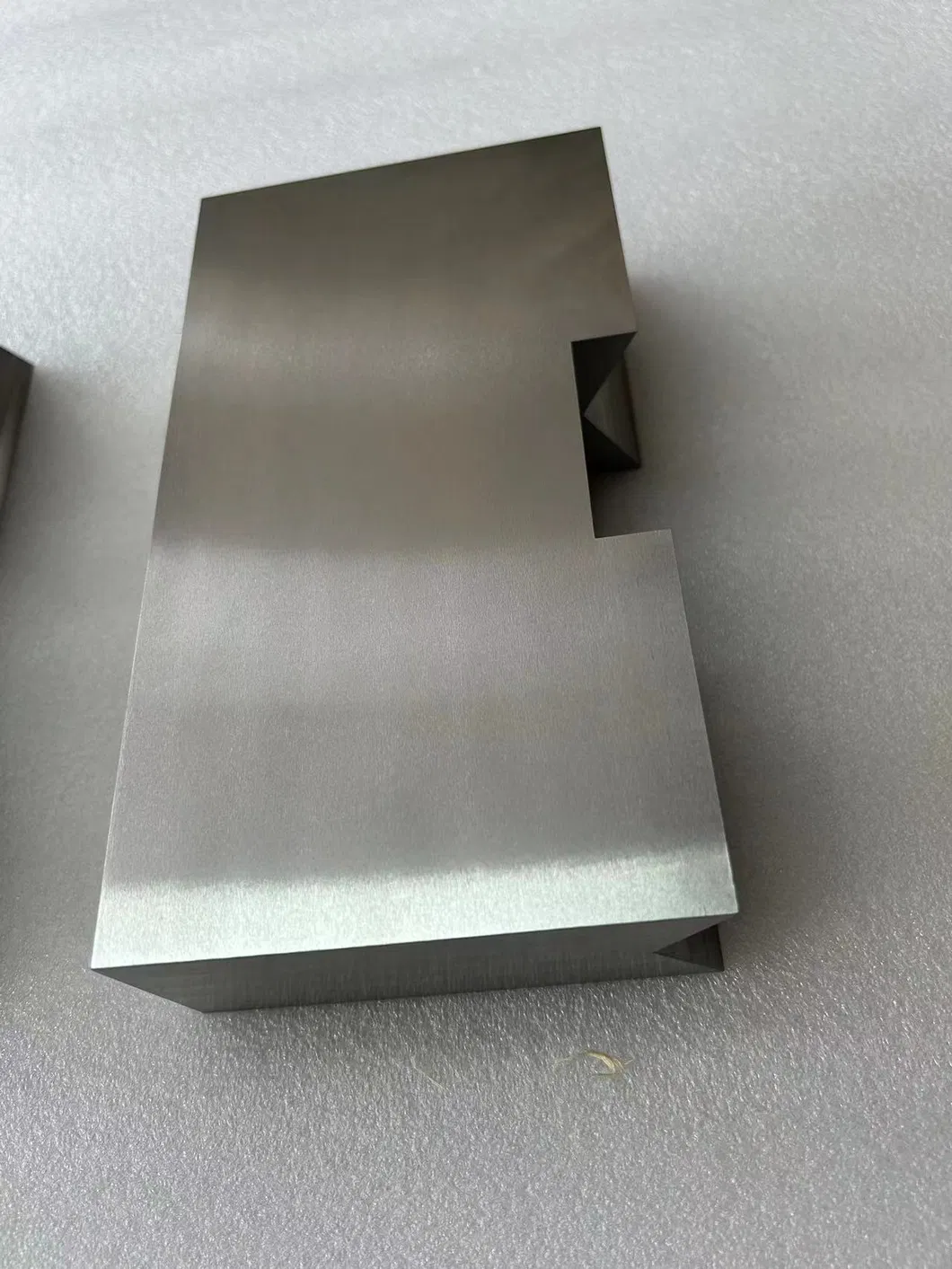

Detailed Tungsten Photo 3
📋 Technical Parameters
Property WNiFe (ASTM B777, AMS-T-21014) WNiCu (ASTM B777, AMS-T-21014)
Designation 90W93W95W97W 90W93W95W
Density (g/cm³) 16.85~17.3017.15~17.8517.75~18.3518.25~18.85 16.85~17.3017.15~17.8517.75~18.35
Tensile Strength (MPa) 758Min758Min724Min689Min 648Min648Min648Min
Elongation (%) 5Min5Min3Min2Min 2Min2Min1Min
Hardness (HRC) 32Max33Max34Max35Max 32Max33Max34Max
Yield strength (MPa) 517Min517Min517Min517Min 517Min517Min517Min

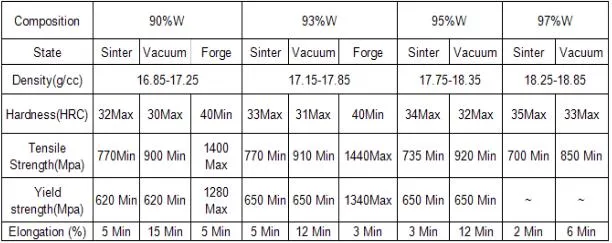

Production Process 1

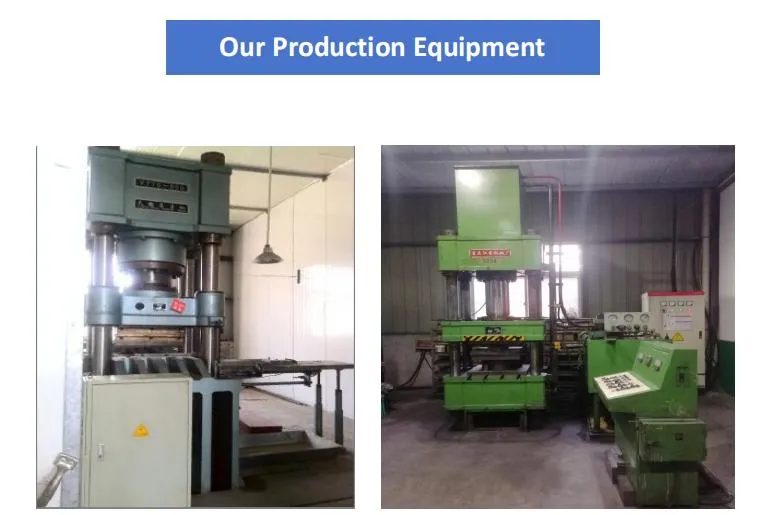

Production Process 2

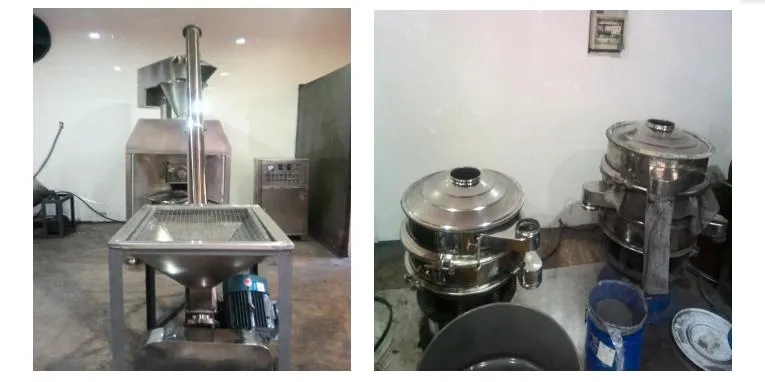

Production Process 3

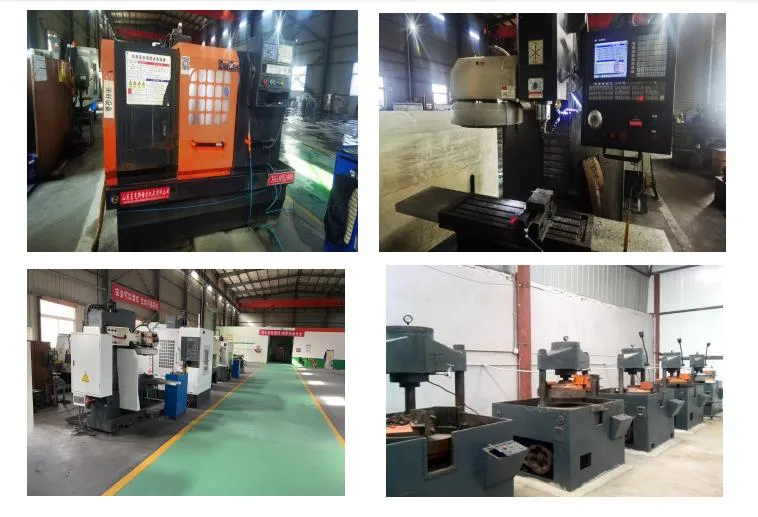

Product Variety 1

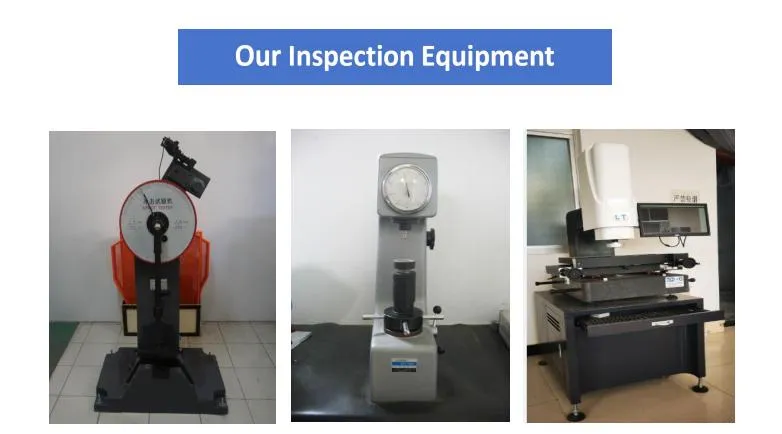

Product Variety 2

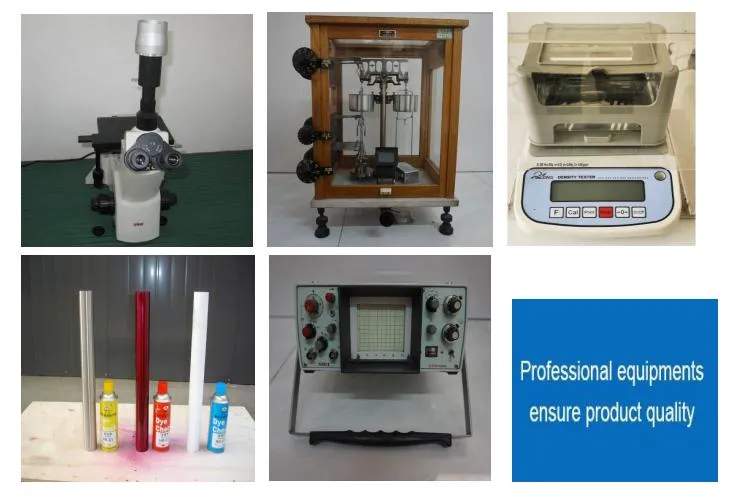

Product Variety 3
Product Variety 4
Product Variety 5
Product Variety 6
Frequently Asked Questions
What is the purity range of these tungsten alloys?
Our tungsten alloy counterweights typically feature a purity range of 90% to 97%, customized based on specific application requirements.
Which standards do these materials comply with?
The products meet international quality standards including ASTM B777, Mil-T-21014, and AMS 7725, ensuring high performance and reliability.
What are the main advantages of tungsten over other metals?
Tungsten offers the highest melting point of all metals, exceptionally high density, and a low coefficient of thermal expansion, making it ideal for precision balance in limited spaces.
Can you provide customized shapes for specific projects?
Yes, we specialize in custom manufacturing of bars, plates, rods, wires, and complex machined parts based on customer drawings.
In what states are the tungsten materials available?
We offer material in Sintered, Vacuum-treated, and Forged states to meet different mechanical property needs.
Is the manufacturing process certified?
Yes, the manufacturing process is ISO9001 certified and all materials used are SGS approved for quality assurance.
