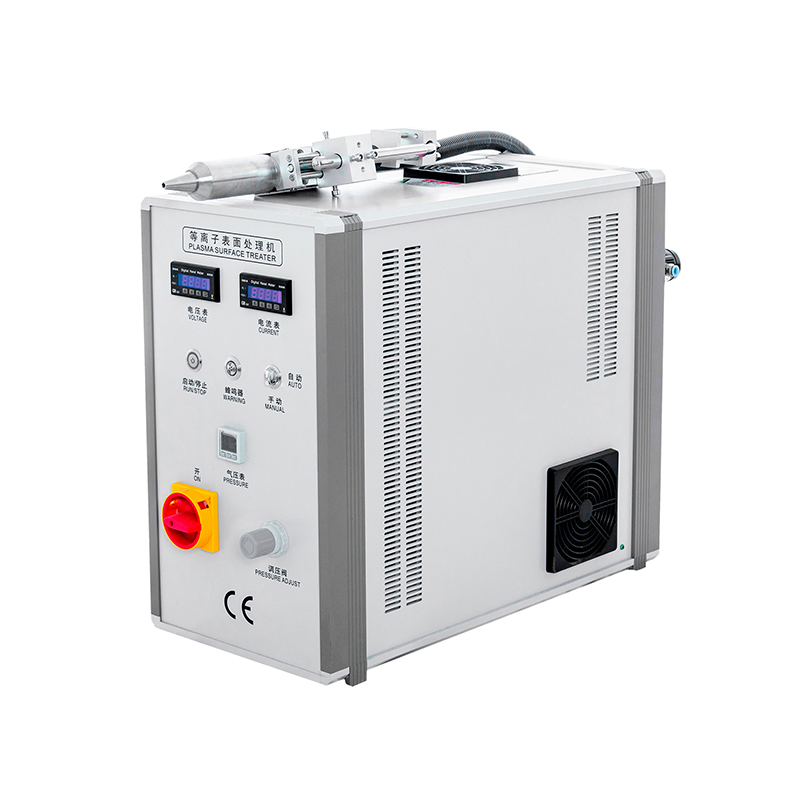

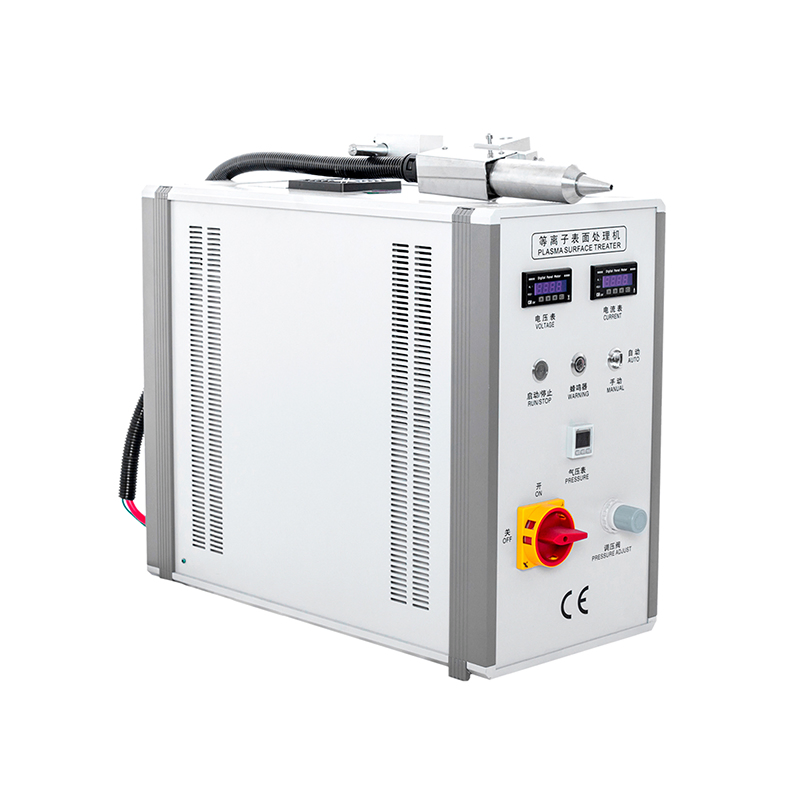

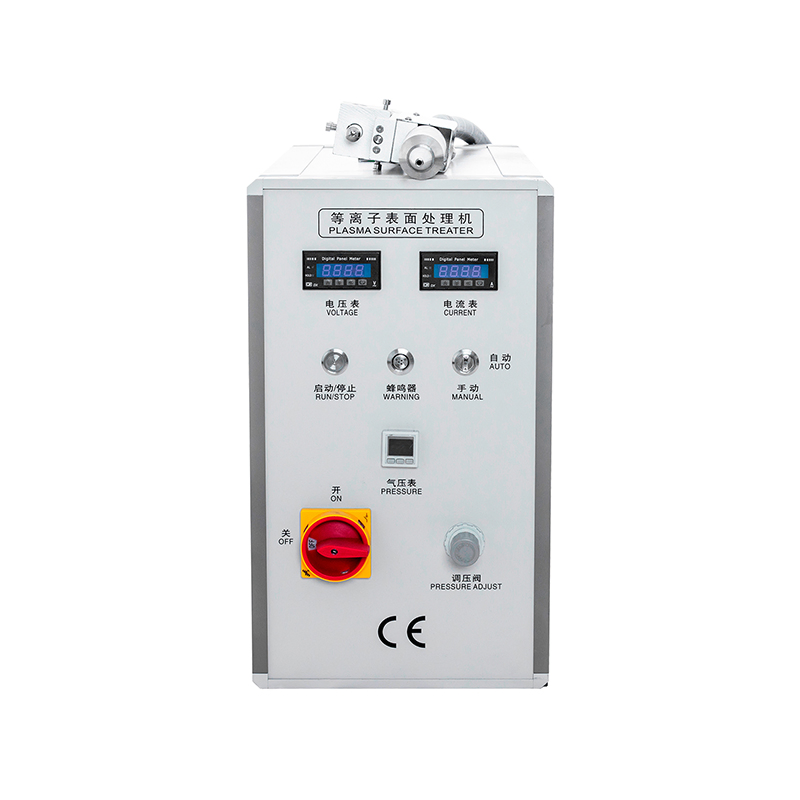

Touch Panel and Display Component Plasma Surface Activator

1 / 5

Touch Panel and Display Component Plasma Surface Activator

Customization:	Available
After-sales Service:	Online Technical Support
Warranty:	One Year

Send Inquiry

Product Description

Overview & Basic Info

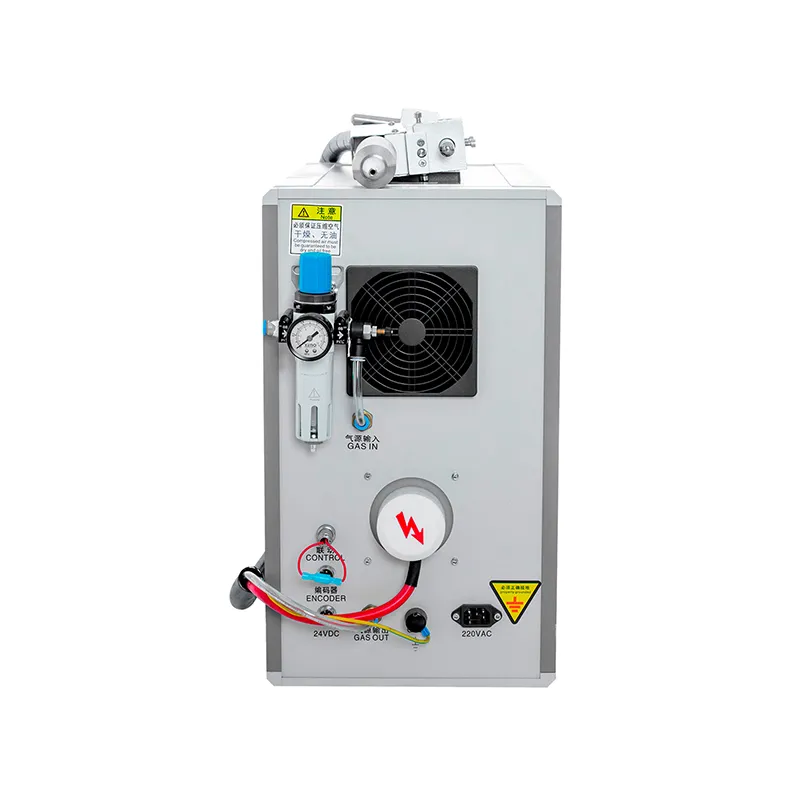

Model NO.:

PL-5010H-OUT

Type:

Clean Machine

Voltage:

220V

Input Current:

6.0A

Air Pressure:

0.1-0.25MPa

Origin:

China

HS Code:

8479899990

Capacity:

1000 sets/Year

Packaging & Delivery

Package Size:

660.00cm * 395.00cm * 530.00cm

Gross Weight:

26.000kg

Transport:

Wooden Case

What is Plasma?

Plasma is an aggregation state of high energy level. Through the input of energy, material is transformed from solid/liquid to gas. Additional energy injected via discharge produces the plasma state, allowing electrons to break away from atomic orbitals and form free electrons, ions, and molecules. This is the "fourth state" of matter.

Applications include: Box folding-gluing in print/package, automobile headlight bonding, household appliance bonding, and safety component assembly.

Technical Specifications

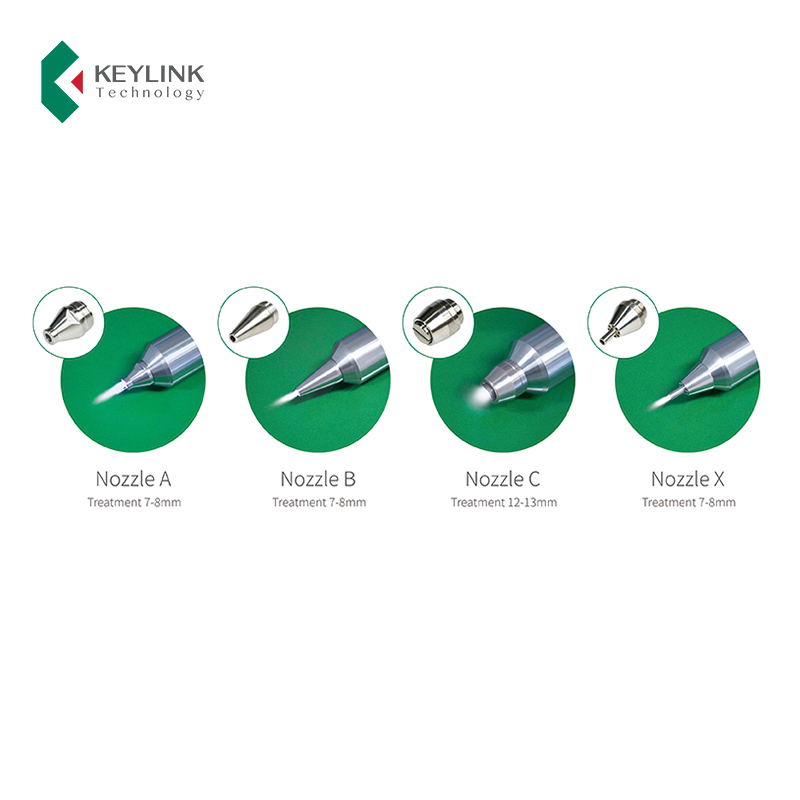

PL-5010H-OUT TECHNICAL DATA		NOZZLE OPTIONS
Interface Display	Three and a half LED digital tube	D04 NX Nozzle A	7-8mm	PL-JX-101-1
Rated Voltage	AC220V ±10%	D04 NX Nozzle B	7-8mm	PL-JX-102-1
Output Power	1000VA	D03 Nozzle C (Flat)	12-13mm	PL-JX-104-1
Input Current	4.0-6.0A	D02xy Nozzle	7-8mm	PL-JX-106-1
Supply Frequency	20kHz
Air Requirement	External (50L/min)
Air Pressure	≥0.6Mpa (Operating 0.1-0.25Mpa)
Chassis Size	690(L)280(W)480(H)mm
Detection	Air pressure, Overtemperature, Undercurrent

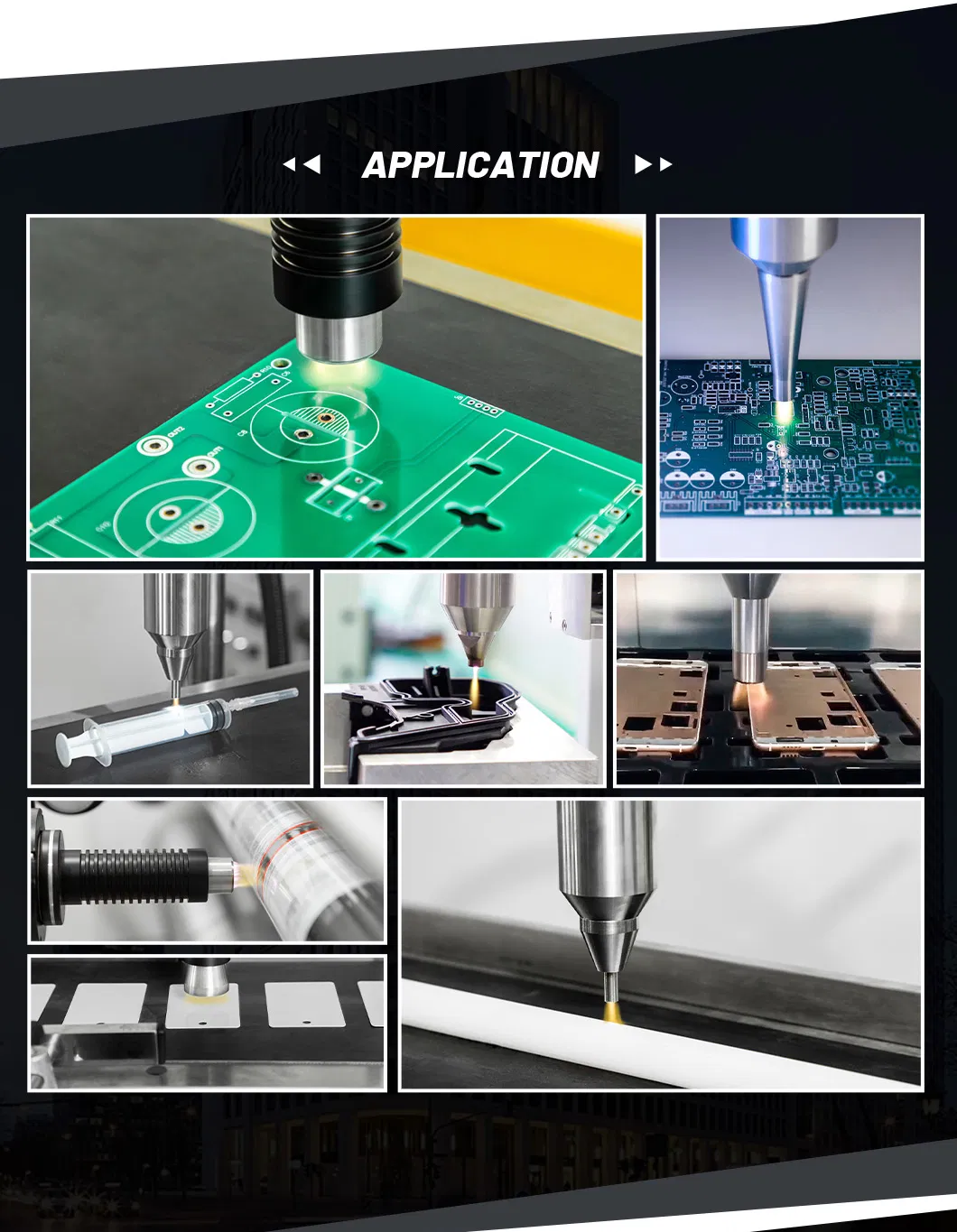

Product Applications

Automotive & Aerospace

Car headlights & EPDM profiles
Motor pump housing & Tyres
Aircraft components

Electronics & Display

Mobile phones & Flat screens
Microphones & Loudspeakers
Computer components

Medical & Sterilization

Infant oxygenators
Cardiac pacemakers & catheters
Operating implants

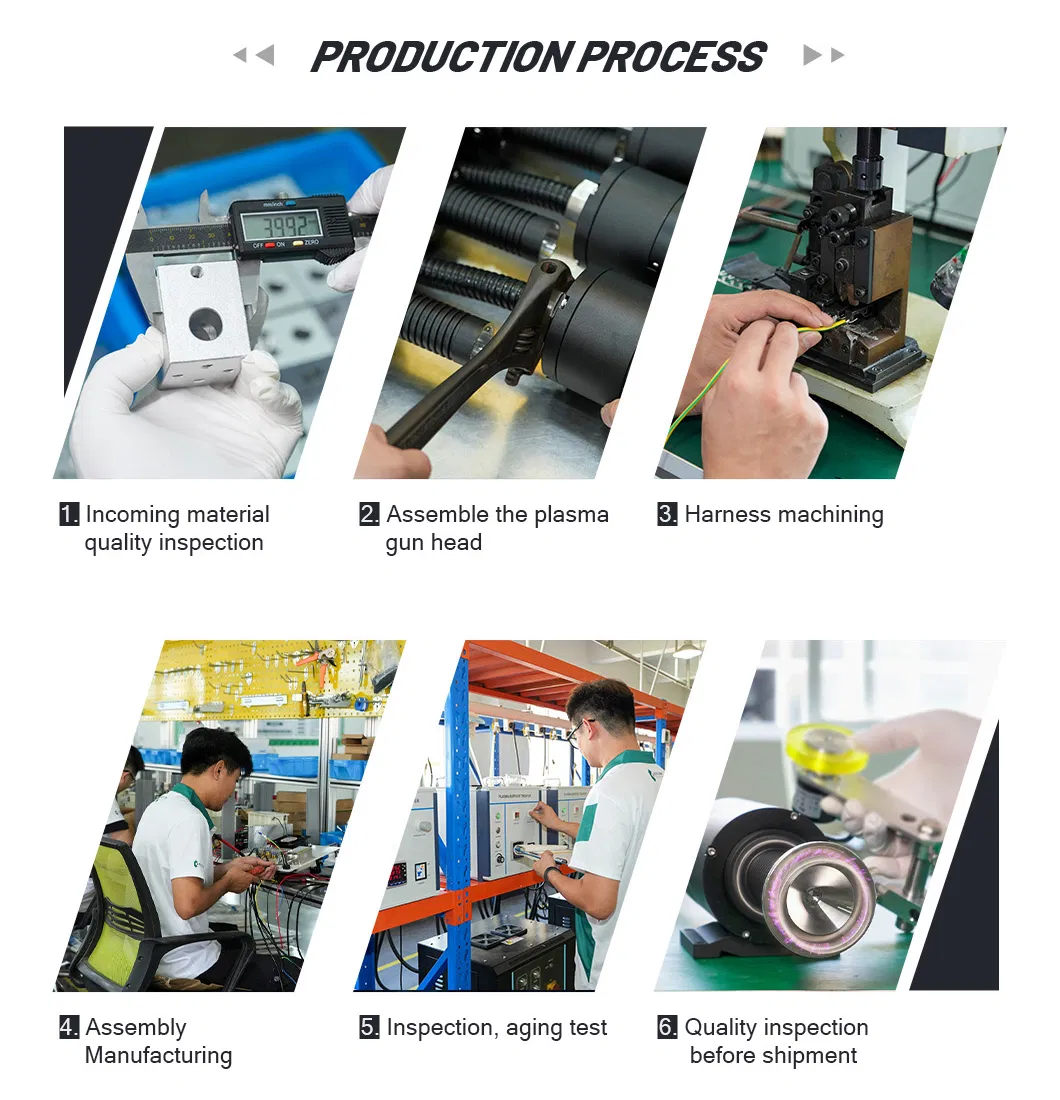

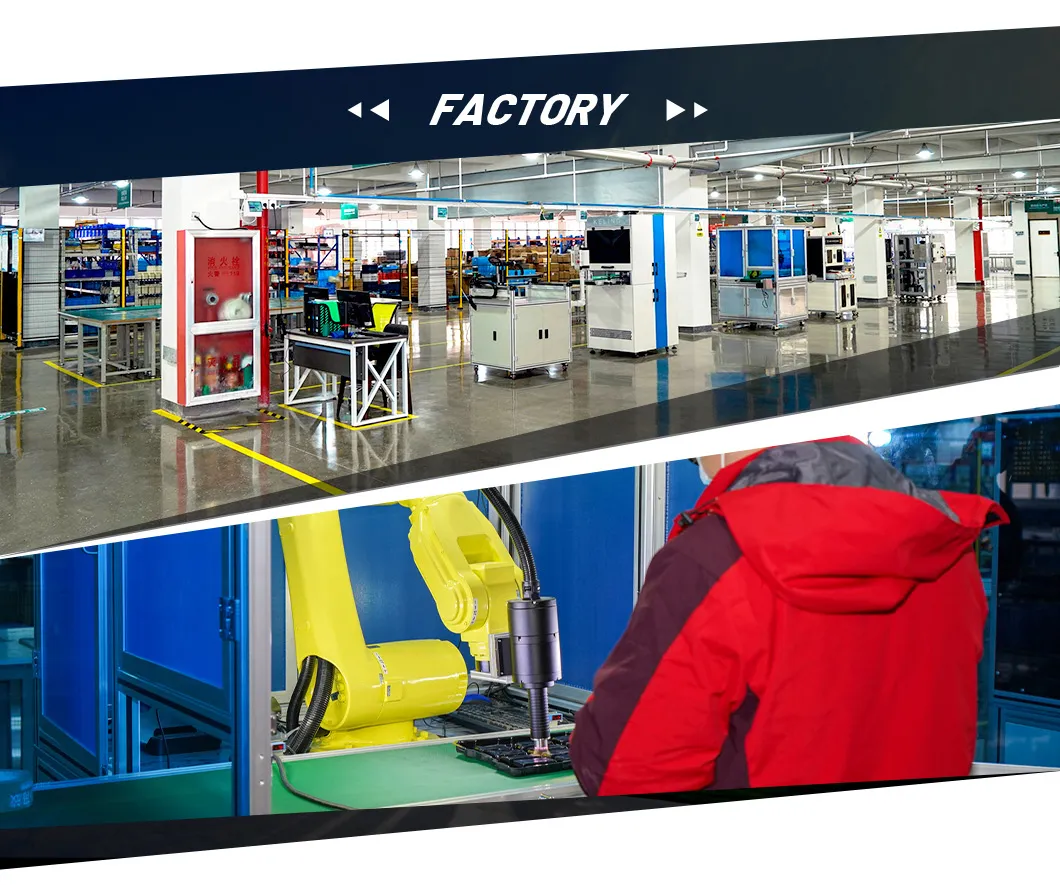

Production & Certifications

Exhibition & Logistics

Frequently Asked Questions

1. What is the shipping warehouse location?

Our main shipping warehouse is located in China, and we ship globally via trusted logistics partners. We also accommodate customer-preferred shipping methods or carriers.

2. What is the production lead time?

Lead time varies based on order size. For small to medium orders (e.g., 10-20 machines), the lead time is approximately 3-4 workdays. We expedite production to meet tight deadlines whenever possible.

3. Can I customize my order for specific configurations?

Yes, customization is available! We can tailor machine configurations, spare parts, and accessories like nozzles or cable lengths based on your specific requirements.

4. What are the payment terms?

We offer flexible terms: Full payment before shipping or a 50% deposit upon order confirmation with the remaining balance before shipment. Payments are typically made via SWIFT transfer.

5. What kind of after-sales support do you provide?

We provide technical assistance via email/video calls, quick access to spare parts, comprehensive documentation (manuals/SOPs), and on-site support for critical issues if required.

6. What safety detections does the machine feature?

The PL-5010H-OUT includes integrated air pressure detection, overtemperature detection, and undercurrent detection with automatic fault alarms.
