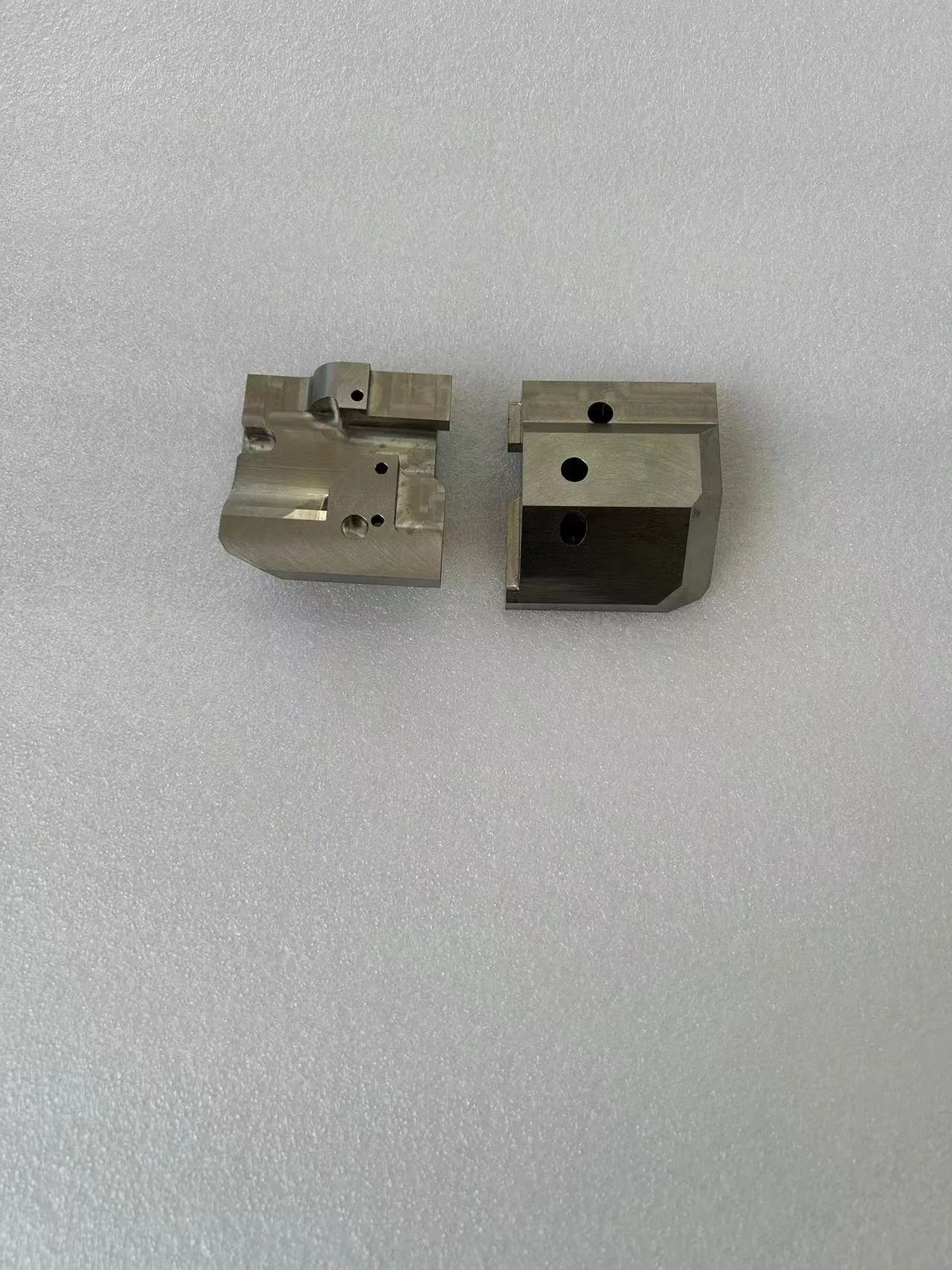

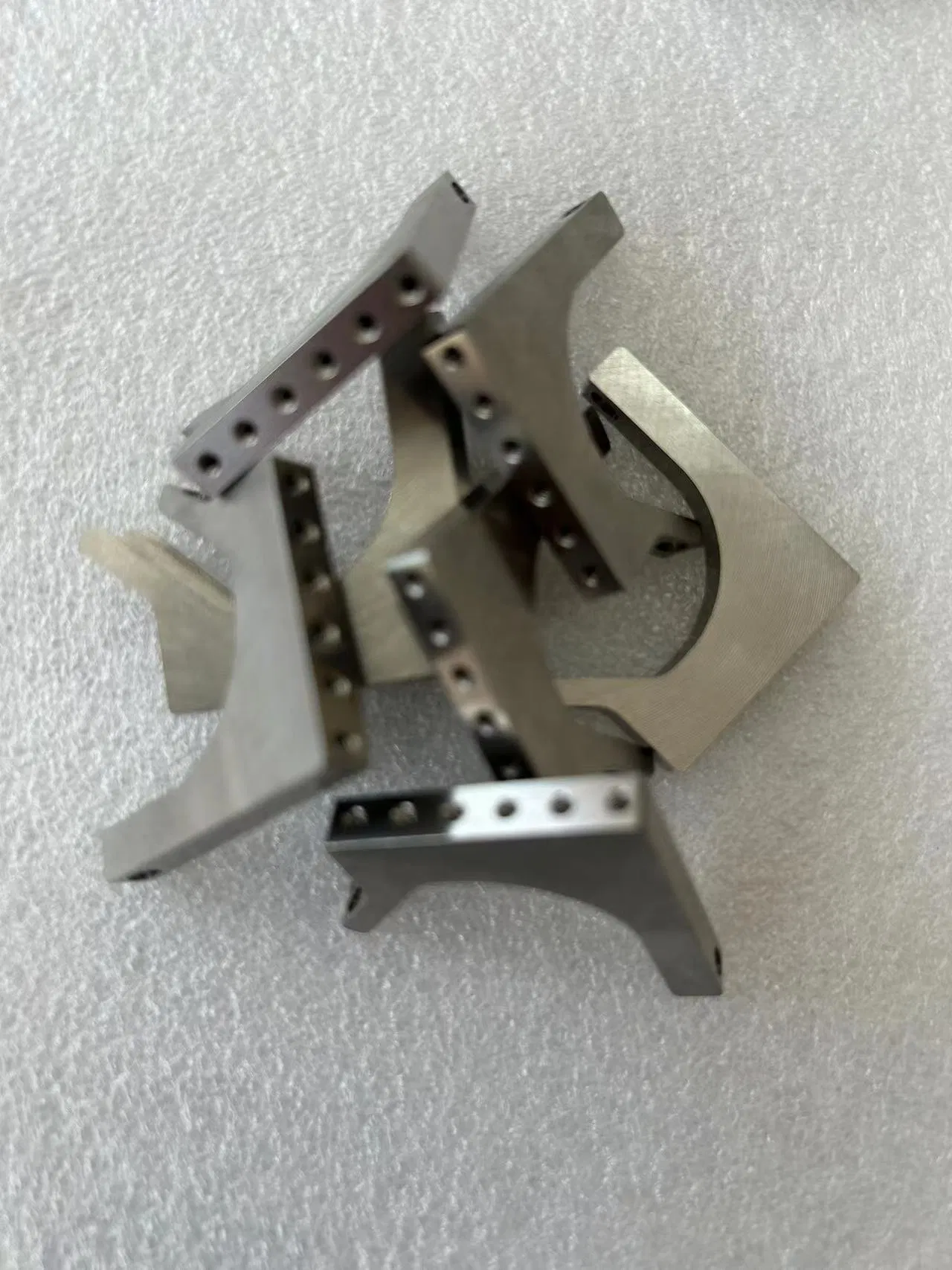

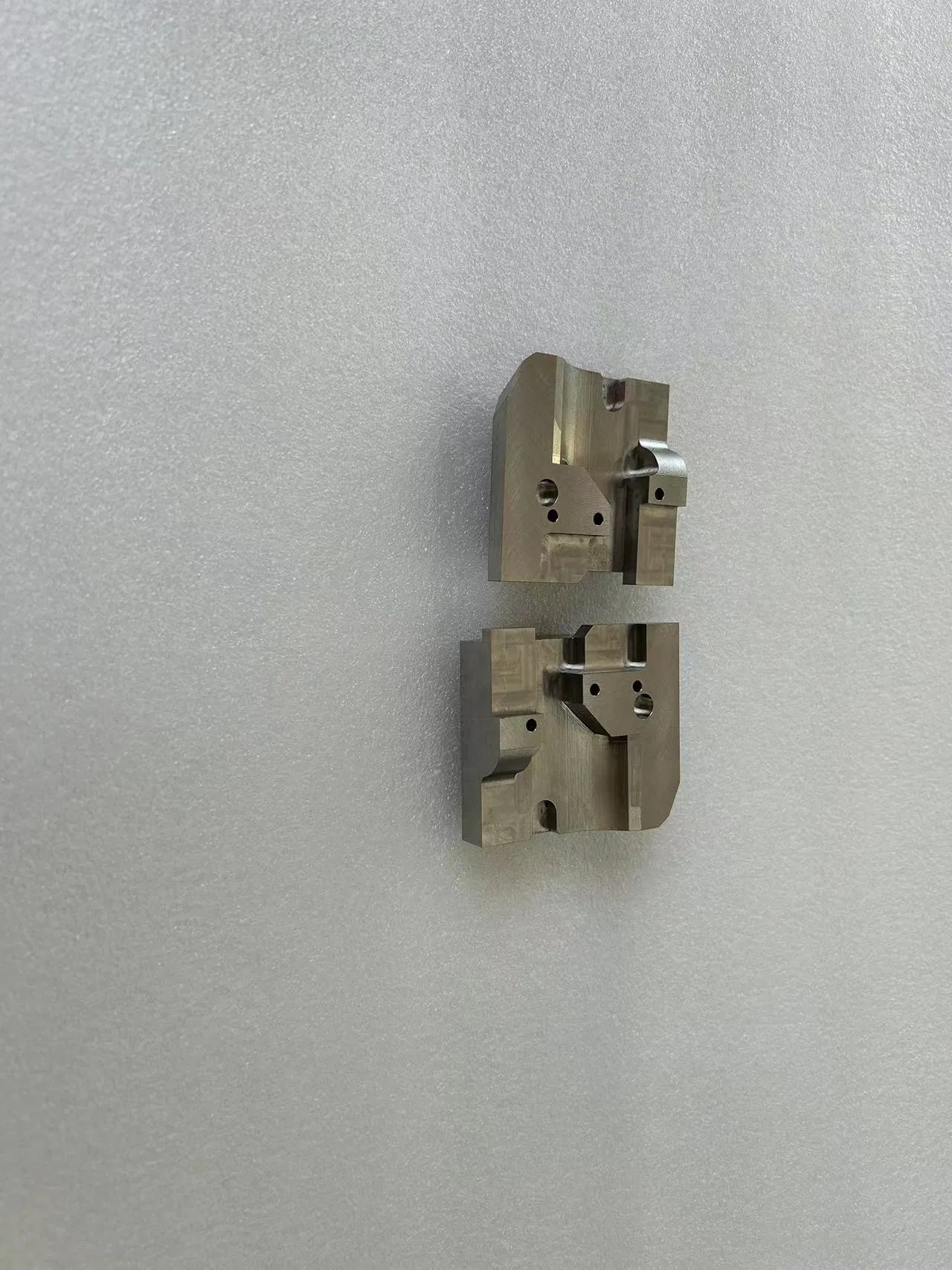

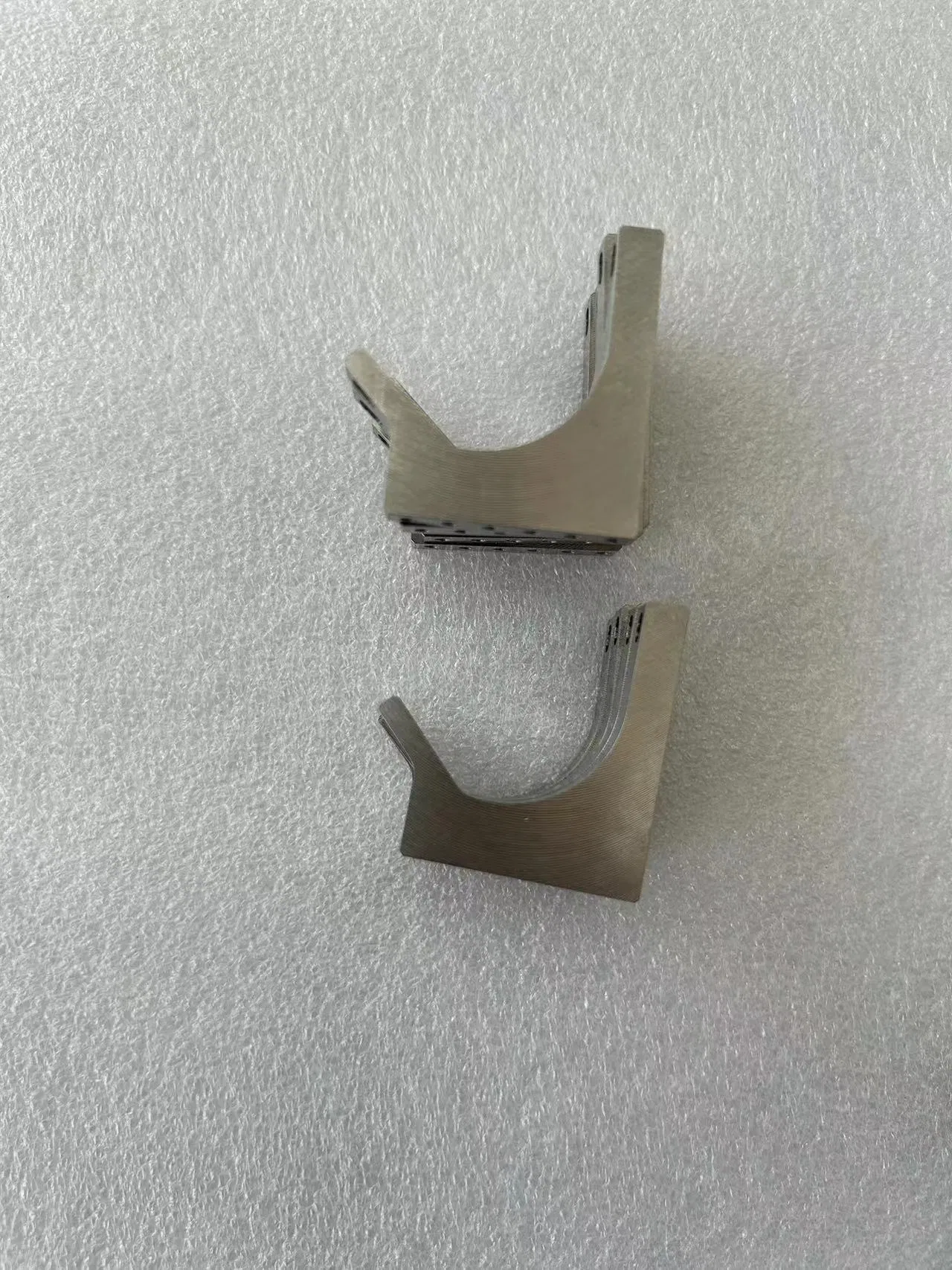

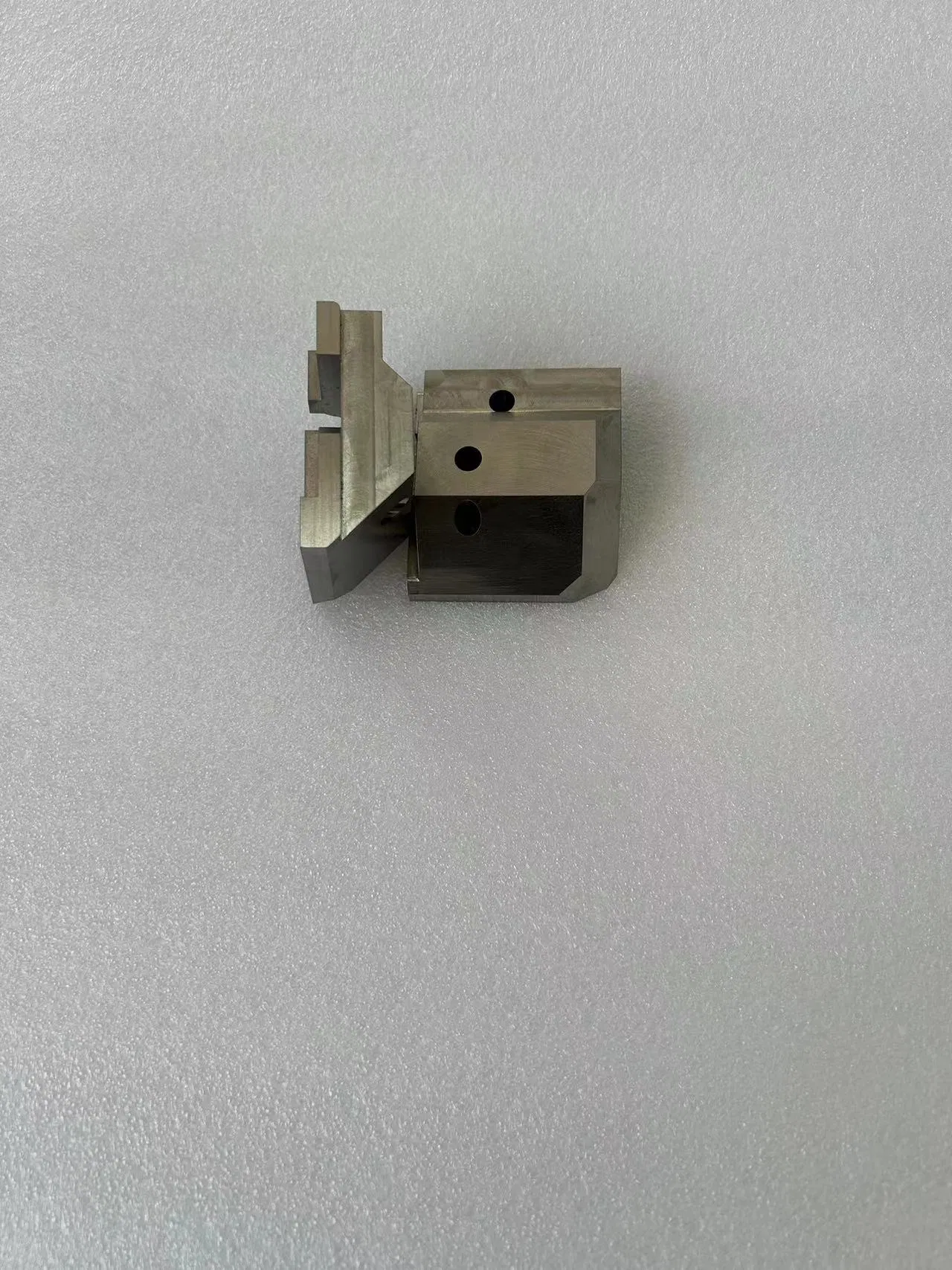

High Quality and High Precision Engineered Tungsten Counterweights or Balance

Still deciding? Get samples of $ !
Request Sample

Product Description

📊

Basic Specifications

Model NO.
TC003
Purity
90%~97%
Alloy
Alloy
Shape
Standard or Customized
Supply State
Sintered, Forged and Vacuum Treatment
Grade
ASTM B777-15, AMS 7725, AMS-T-21014
Density G/Cc
16.85~18.85
Ultimate Tensile Strength
689MPa - 758MPa
Yield Strength
517MPa
Production Capacity
5000kgs Per Month
🏢

Manufacturing Overview

As an aerospace alloy manufacturer and supplier, we offer high-end precision refractory heavy tungsten alloy machining parts to our customers worldwide. We test our products to the highest standards, ensuring that each time you purchase from us you can feel rest assured knowing you're receiving superior industrial tungsten or tungsten alloys in the right specs for your needs. Our aerospace clients use our metals for purposes of aircraft engines, landing equipment, parts that need to thrive in high temperature elements, exhaust equipment and more.

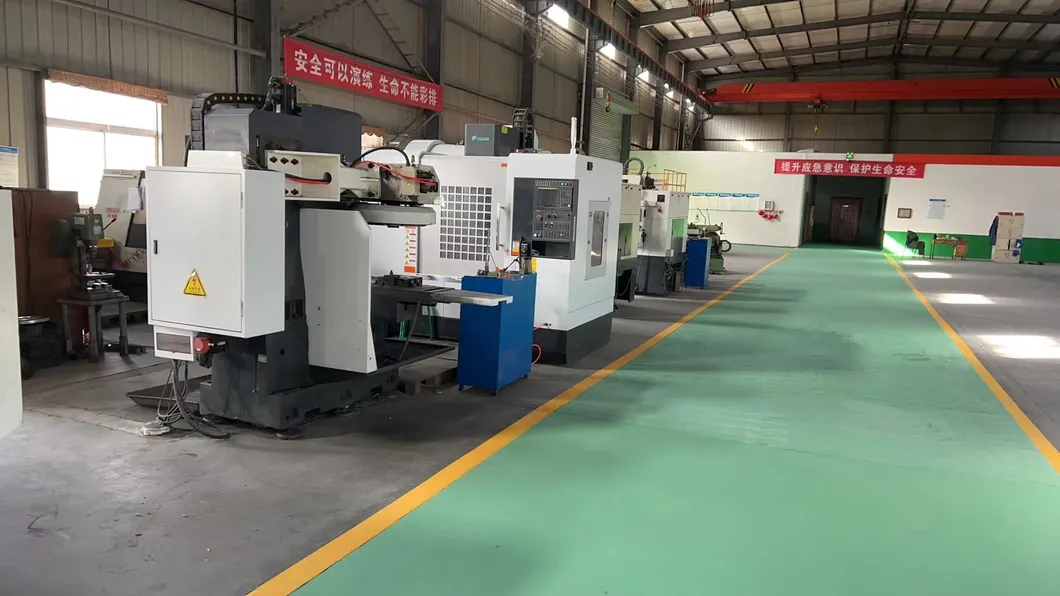

Engineered Tungsten Counterweights
🛠️

Product Description

In light of meeting with the rapidly growing aviation market, we work closely with our customers in developing and producing custom products per customer requirements and drawings. With over 25 years of experience in manufacturing high performance materials for various applications, we have been consistently dedicated to supplying materials and products of exceptional quality. As an integrated manufacturer, we perform tight control of all our processes from refining the raw materials to delivering high quality finished products which enable us to have a unique global reach allowing for close contact and collaboration with our customers.

High Precision Engineered Tungsten

Characteristics and Features

The quality received by our customer is guaranteed to have the required flatness, roughness and machinability. We process different sizes with high density, high melting point, high hardness, excellent wear resistance, high ultimate tensile strength, good extension, low vapor pressure, heat resistant, good thermal stability, easy processing, and corrosion resistance.

  • Low thermal expansion
  • High Density
  • Radiation Absorption
  • High thermal and electrical conductivity
  • High arc resistance
  • Hardness and Wear Resistance
  • Excellent impact and crack resistance
  • Non-toxic environmental protection
📷

Detailed Photos

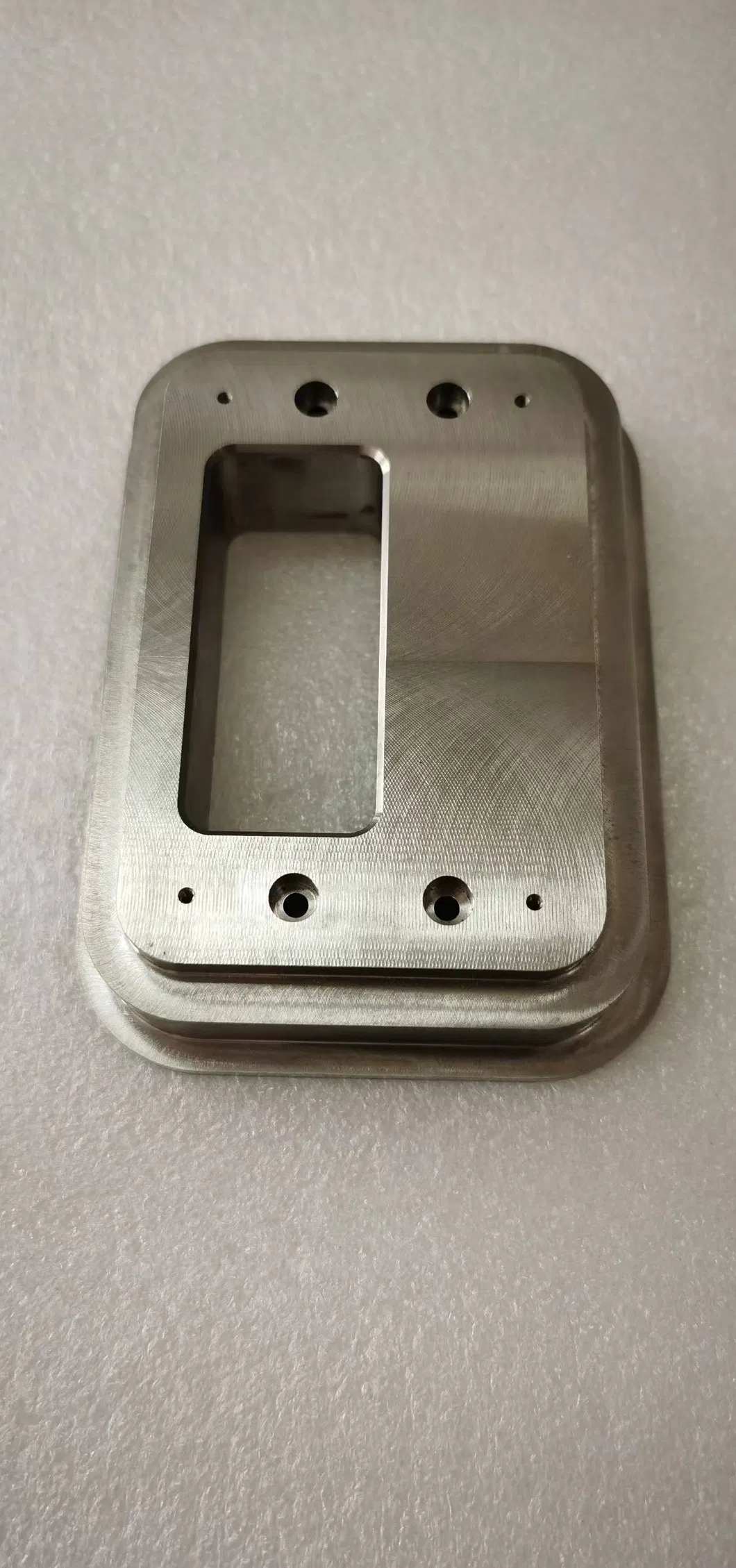

Detailed View 1

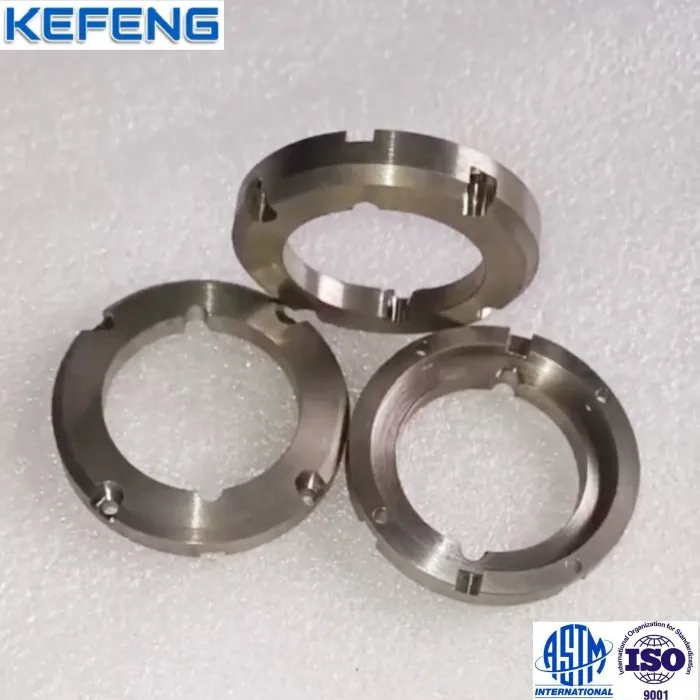

Detailed View 2

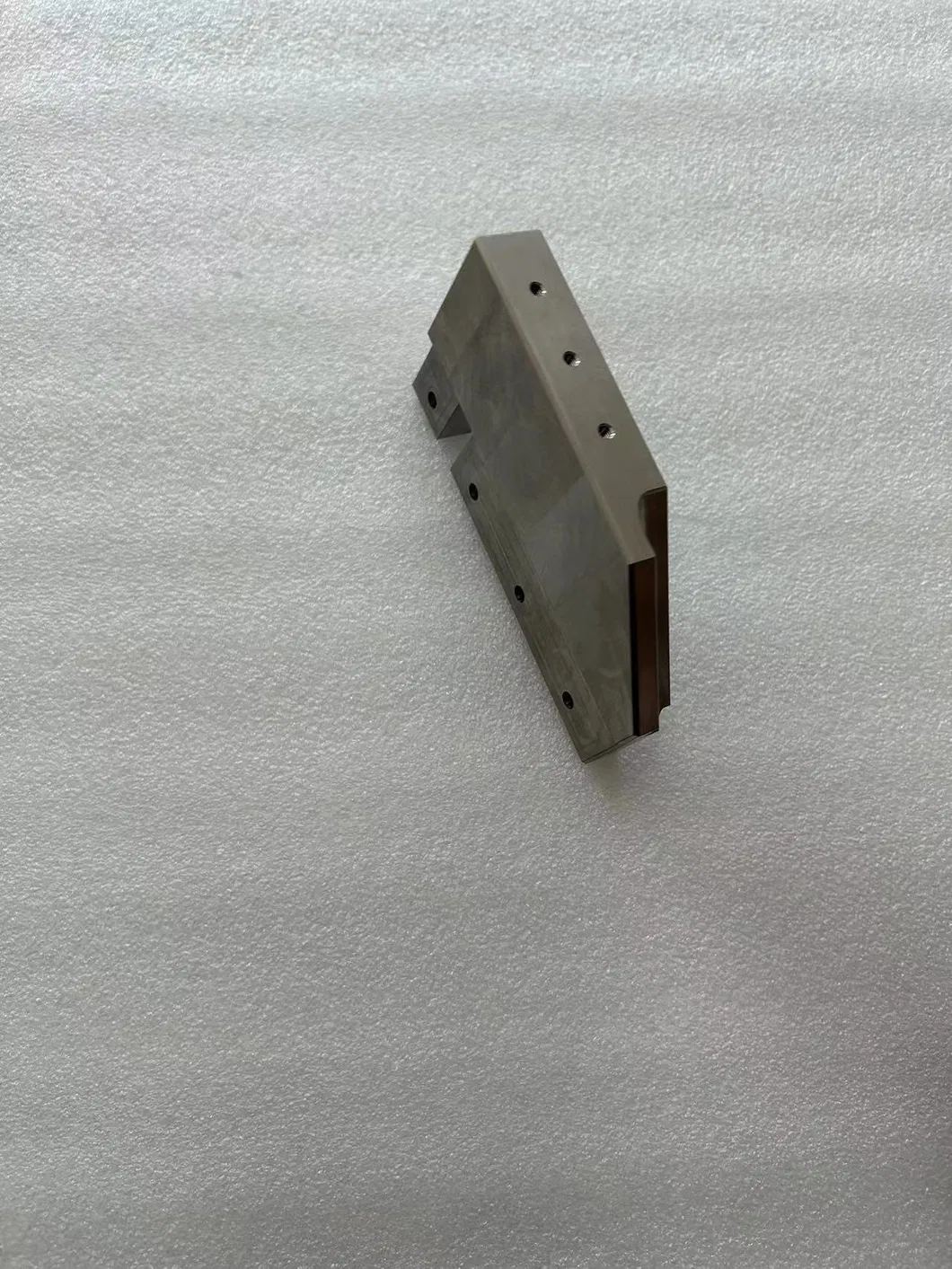

Detailed View 3
🚀

Application Areas

We offer a range of aviation applications from technology refractory metals of tungsten and its alloys, guaranteeing superior performance for machined fabricated parts. Tungsten alloy sheets and plates with ASTM B777 and AMS-T-21014 are usually used for shielding and targets to avoid radiation.

  • Aircraft control surfaces
  • Contact and electrode materials
  • Automotive suspension systems
  • High temperature furnace component
  • Computer disk drives
  • Heat sink
  • Engine components
  • Golf club weights
  • Helicopter rotor systems
  • Ship ballasts

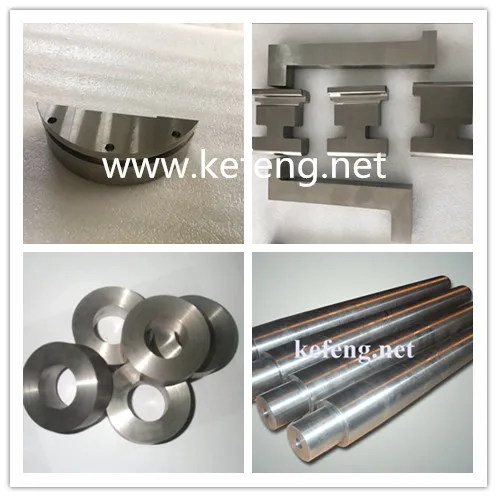

Application 1

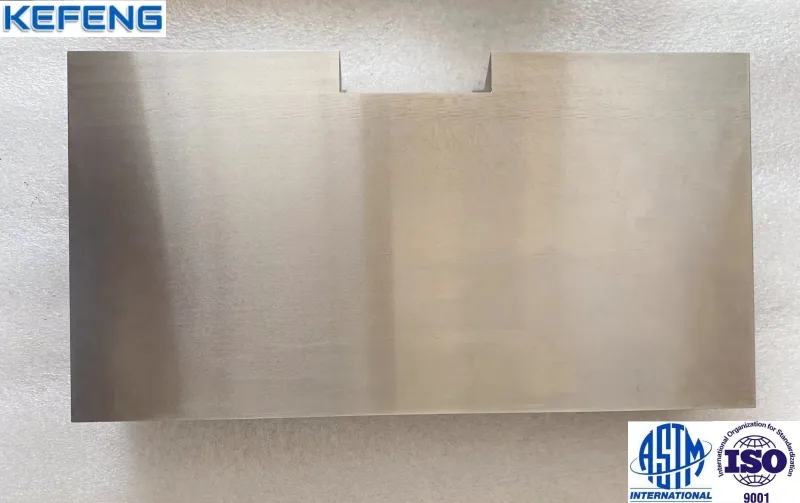

Application 2
📊

Technical Parameters

Tungsten heavy alloy WNiFe (ASTM B777, AMS-T-21014) WNiCu (ASTM B777, AMS-T-21014)
Designation 90W93W95W97W 90W93W95W
Density (g/cm3) 16.85-17.3017.15-17.8517.75-18.3518.25-18.85 16.85-17.3017.15-17.8517.75-18.35
Tensile (MPa) 758Min758Min724Min689Min 648Min648Min648Min
Elongation (%) 5Min5Min3Min2Min 2Min2Min1Min
Hardness (HRC) 32Max33Max34Max35Max 32Max33Max34Max

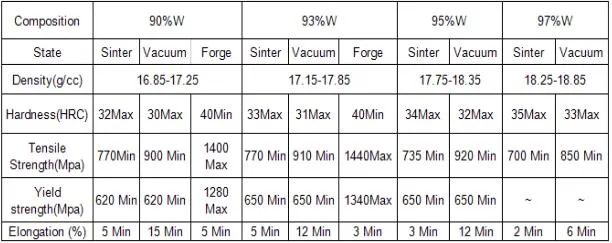

Technical Chart
🛡️

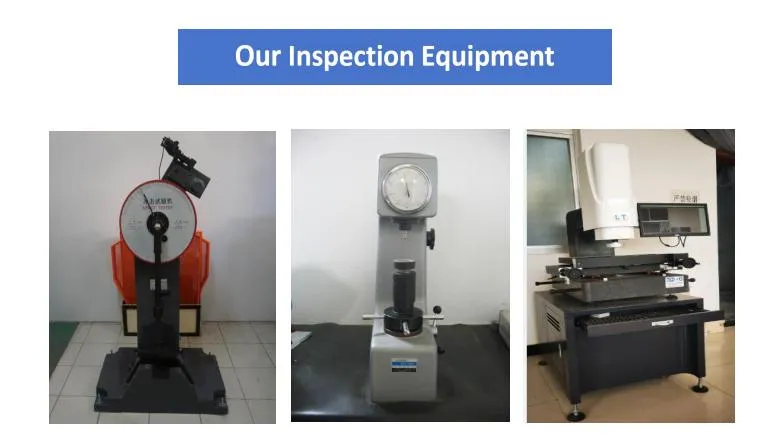

Quality Assurance & Test Equipment

We offer comprehensive test reports including all relevant technical data for physical, material, and chemical properties for all finished products.

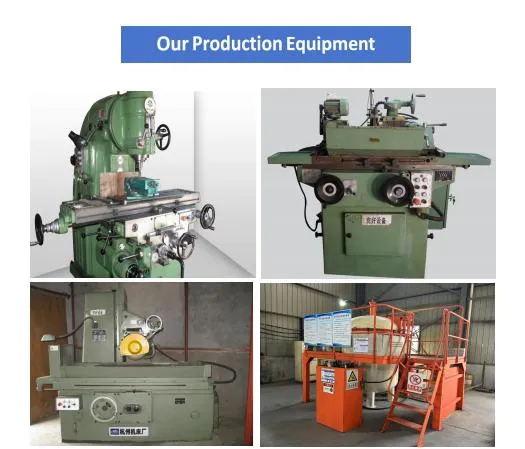

Test Equipment 1

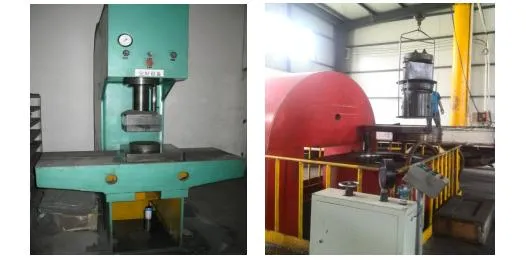

Test Equipment 2

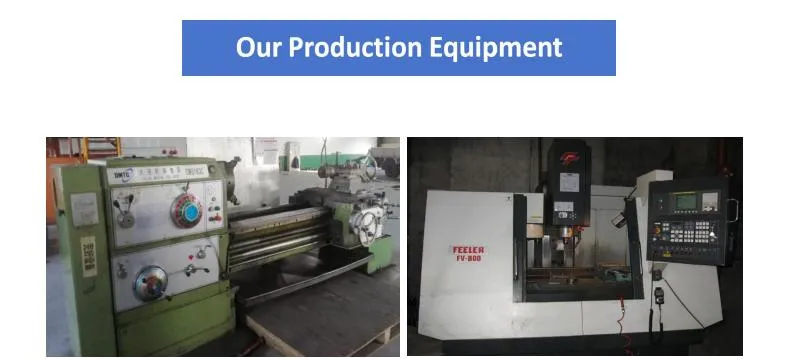

Test Equipment 3
Test Result 1

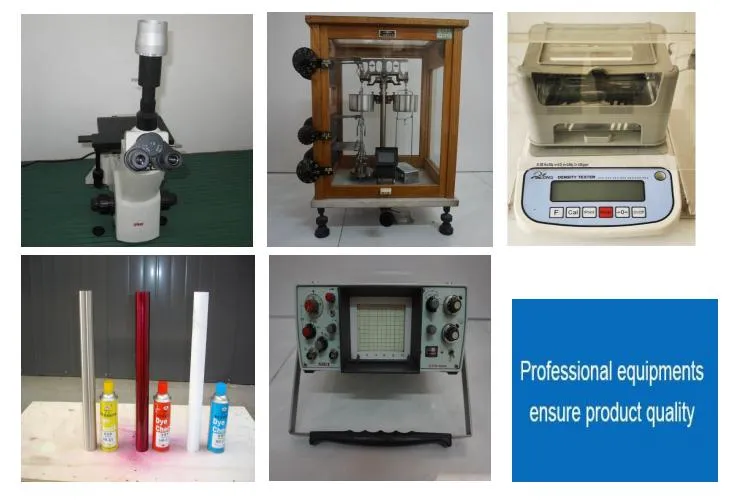

Test Result 2
Test Result 3

Frequently Asked Questions

What standards do your tungsten alloys comply with?
Our products meet international standards including ASTM B777-15, AMS 7725, and AMS-T-21014, ensuring suitability for aerospace and industrial use.
What is the purity range of your heavy tungsten alloys?
We offer alloys with a tungsten purity ranging from 90% to 97%, depending on your specific application requirements.
Can you provide customized shapes and sizes?
Yes, we provide sheet, plate, foil, and strip forms, and can manufacture custom parts according to your specific drawings and specifications.
What are the main advantages of using heavy tungsten alloy in aerospace?
Key benefits include high density, high radiation absorption, excellent thermal stability, and high tensile strength, making them ideal for counterweights and shielding.
Do you provide technical test reports with the products?
Absolutely. We provide comprehensive test reports covering physical, chemical, and material properties for all finished products.
What is your monthly production capacity?
We have a production capacity of approximately 5000kgs per month to support both small and large-scale industrial demands.
