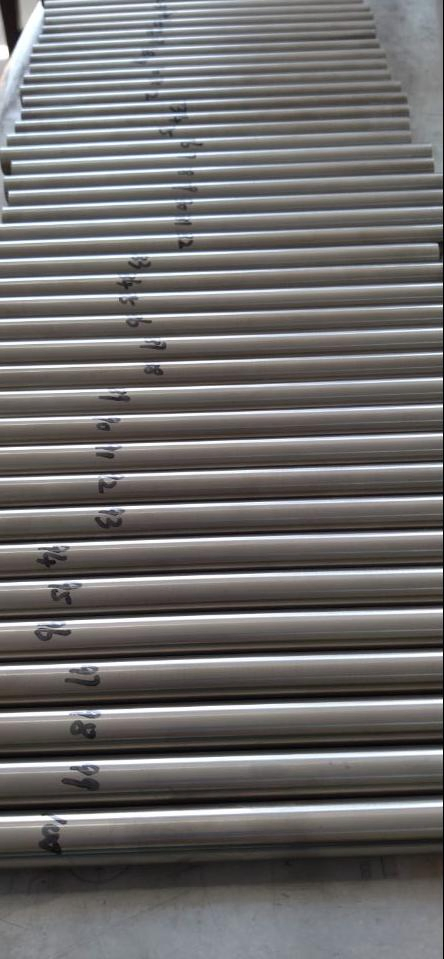

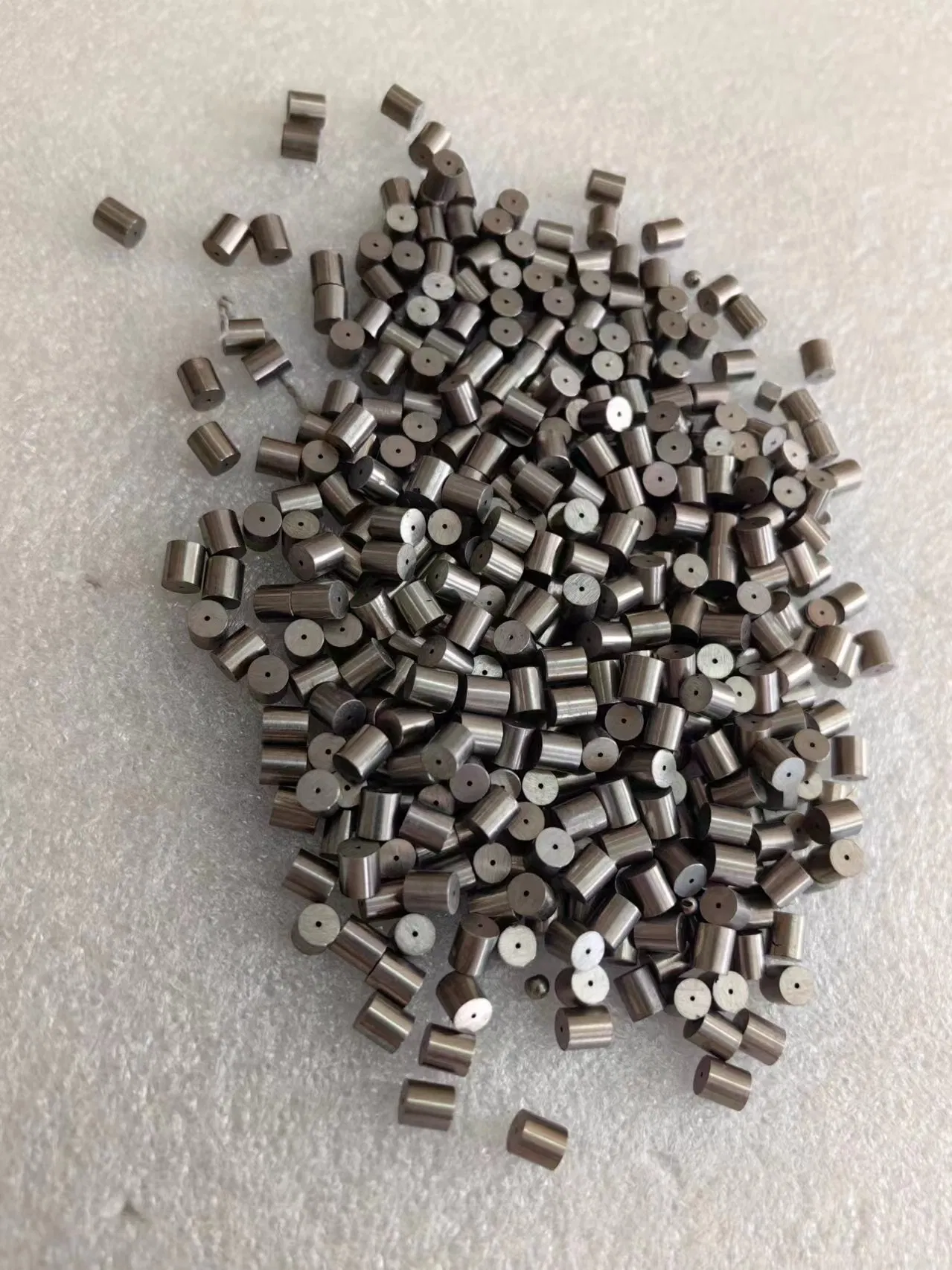

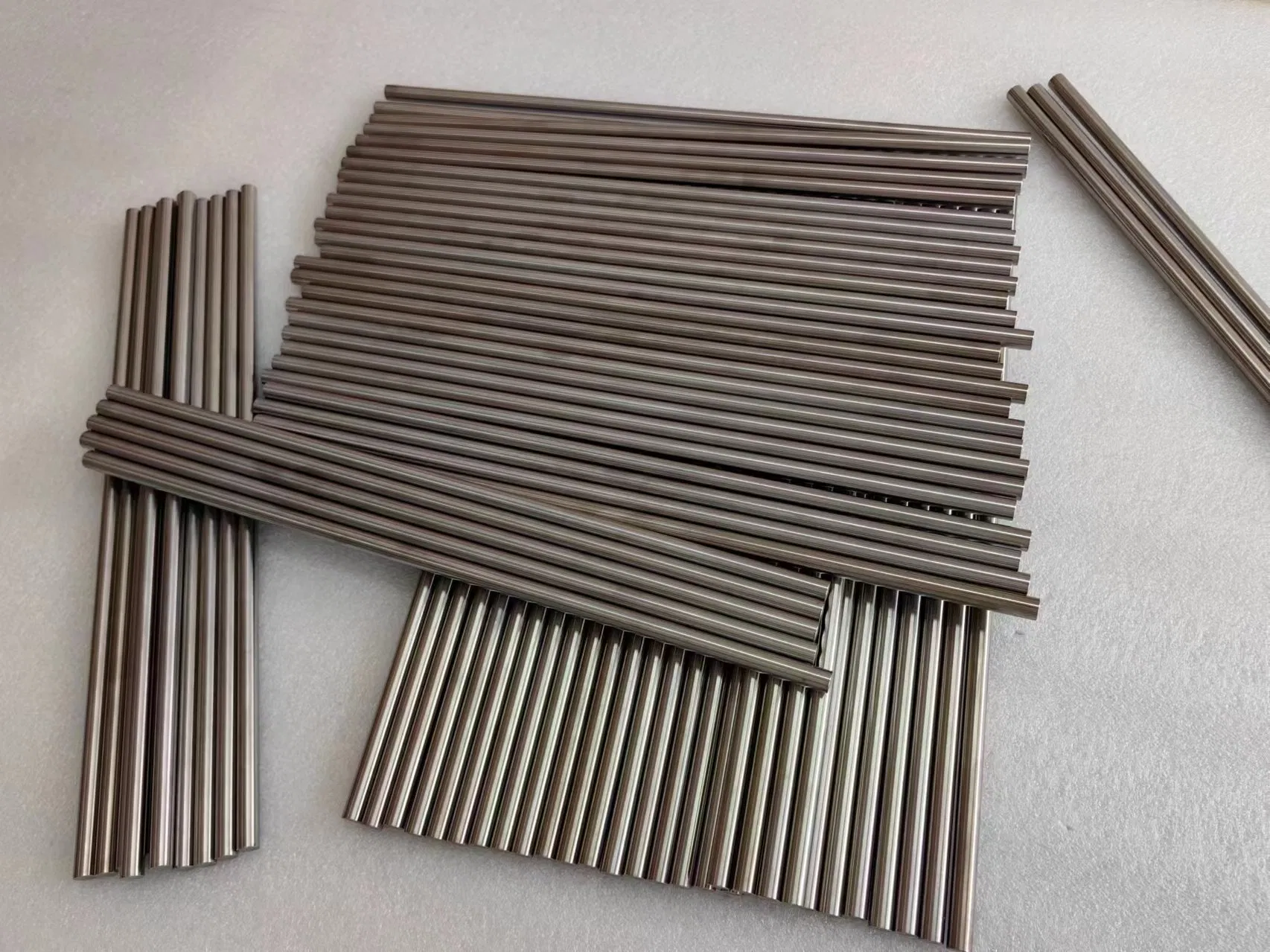

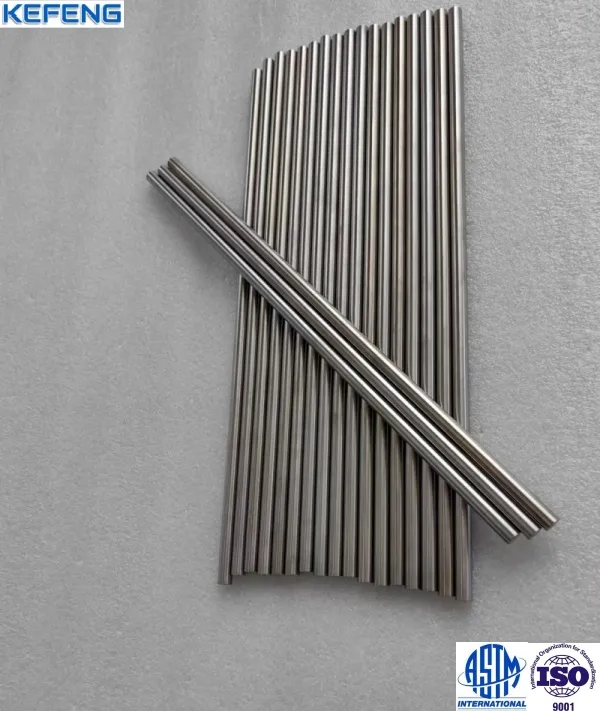

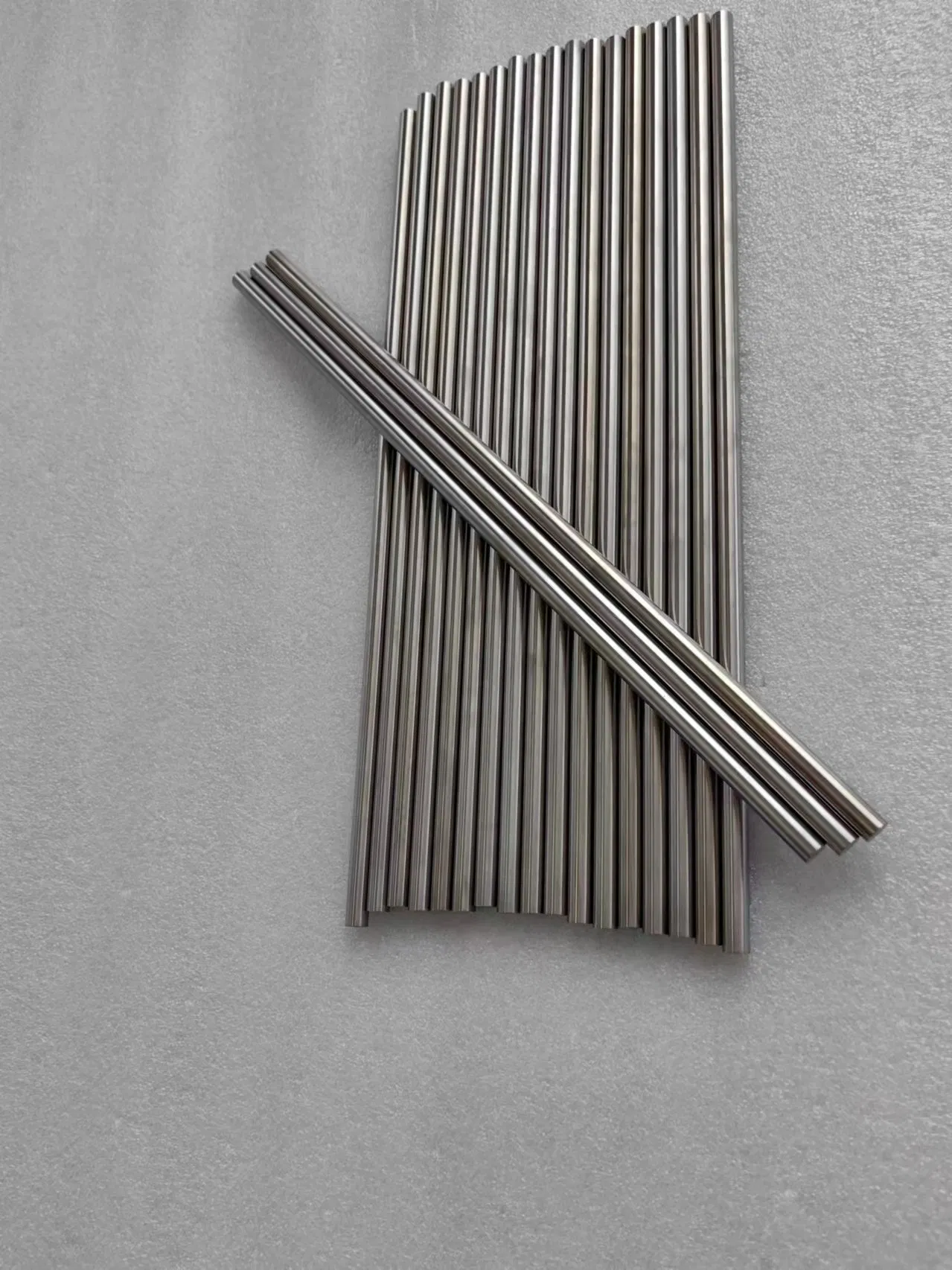

Factory Direct Supply Tungsten Heavy Alloy Rod Wnife Wnicu Rod Bar

i

Basic Specifications

Model NO.

TR002

Purity

90%~97%

Alloy

Shape

Round

Type

Rod

Mini. Diameter

0.508mm/0.02"

Max. Diameter

508mm/20"

Supply State

Sintered, Forged and Vacuum Treatment

Material

90%-97% WNiFe or 90%-97% WNiCu

Grade

ASTM B777-15 AMS 7725

Density

16.85~18.85g/Cc

Tensile Strength

Up to 758MPa

Origin

China

HS Code

81019910

P

Product Description

We are capable of producing tungsten alloy rods in various sizes and grades to meet customer needs. The process has been passed and accredited ISO9001. We have our own R&D team and can customize products according to customer requests. Tungsten rods generally need to be produced upon ordering, but we maintain stocks for common specifications in diameters such as 6mm, 10mm, 12mm, and 15mm with a surface grinding finishing.

AMS 7725 Tungsten Alloy Rod is an ideal choice for radiation shielding, ordnance parts, and high-temperature tools. We provide high-density tungsten alloys that offer a unique combination of density, mechanical strength, workability, and corrosion resistance.

C

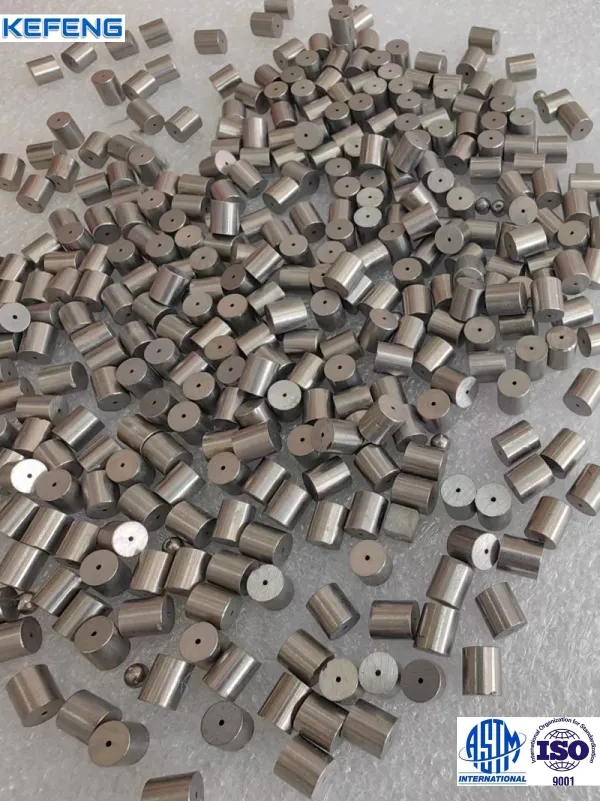

Characteristics & Features

High density and high melting point
High hardness and excellent wear resistance
High ultimate tensile strength and good extension
Heat resistant with good thermal stability
Easy processing and corrosion resistance
High radiation absorption capacity
Non-toxic and environmental protection (International Standards)

A

Applications

ASTM B777 Rods: Used for counterweights in oil logging, artillery, rockets, satellites, aircraft, boats, radiation shielding, welding rods, aerospace components, and sports equipment like darts and golf clubs.

AMS 7725 Rods: Mainly used in:

Resistance welding electrodes
Electric upsetting anvils
Radio shielding material and collimators
Partial balance weights
Military and fishery equipment replacing uranium and lead

T

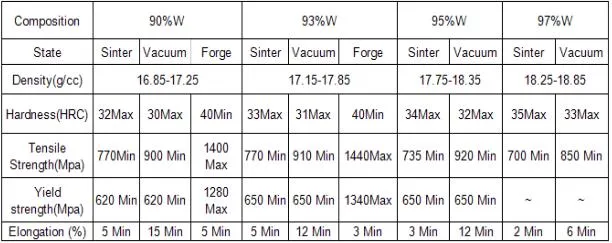

Technical Parameters

Type	WNiFe (ASTM B777, AMS-T-21014)				WNiCu (ASTM B777, AMS-T-21014)
Designation	90W	93W	95W	97W	90W	93W	95W
Density (g/cm³)	16.85-17.3	17.15-17.85	17.75-18.35	18.25-18.85	16.85-17.3	17.15-17.85	17.75-18.35
Tensile (MPa)	758Min	758Min	724Min	689Min	648Min	648Min	648Min
Hardness (HRC)	32Max	33Max	34Max	35Max	32Max	33Max	34Max

Q

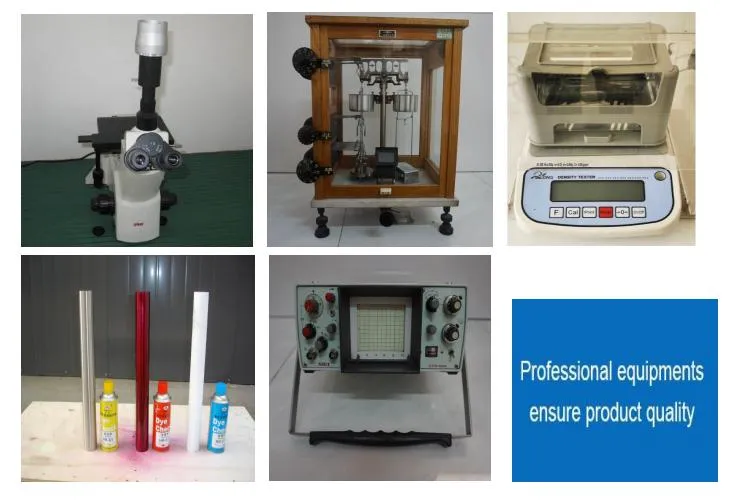

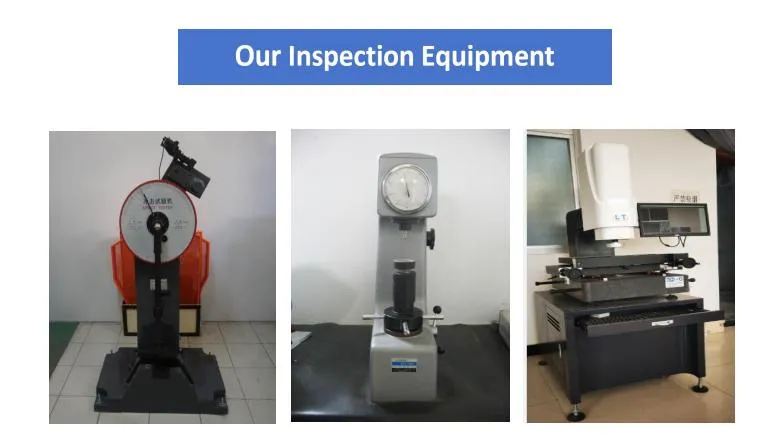

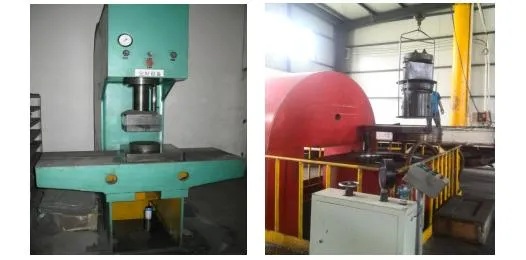

Quality Assurance & Testing

We offer comprehensive test reports including all relevant technical data for physical, material, and chemical properties for all finished products.

?

Frequently Asked Questions

What are the main grades of your tungsten alloy rods?

Our rods primarily comply with ASTM B777-15 and AMS 7725 standards, available in various purity levels from 90% to 97% tungsten.

Can I order customized sizes for tungsten bars?

Yes, we can customize diameters ranging from 0.508mm (0.02") to 508mm (20") and offer various shapes like rods, bars, sheets, and plates upon request.

What is the difference between WNiFe and WNiCu alloys?

WNiFe is commonly used for general high-density applications, while WNiCu is preferred for non-magnetic applications such as electronic shielding or specific medical instruments.

What are the typical applications for high-density tungsten rods?

They are widely used in radiation shielding, aerospace counterweights, oil logging components, military ordnance, and sports equipment like golf club weights.

Do you provide quality certification with the products?

Yes, we provide a complete test report for every order, covering physical properties, chemical composition, and material density data.

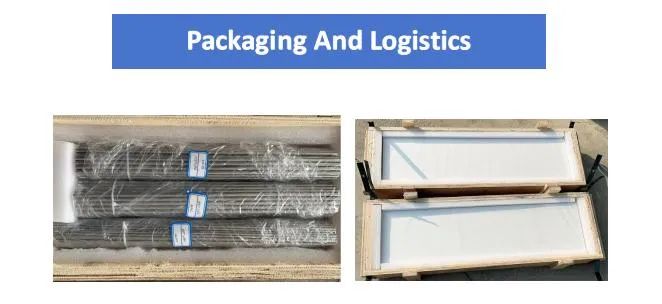

How are the products packaged for international shipping?

We use standard export wooden boxes with internal foam protection to ensure the rods are secured and protected from damage during transit.
