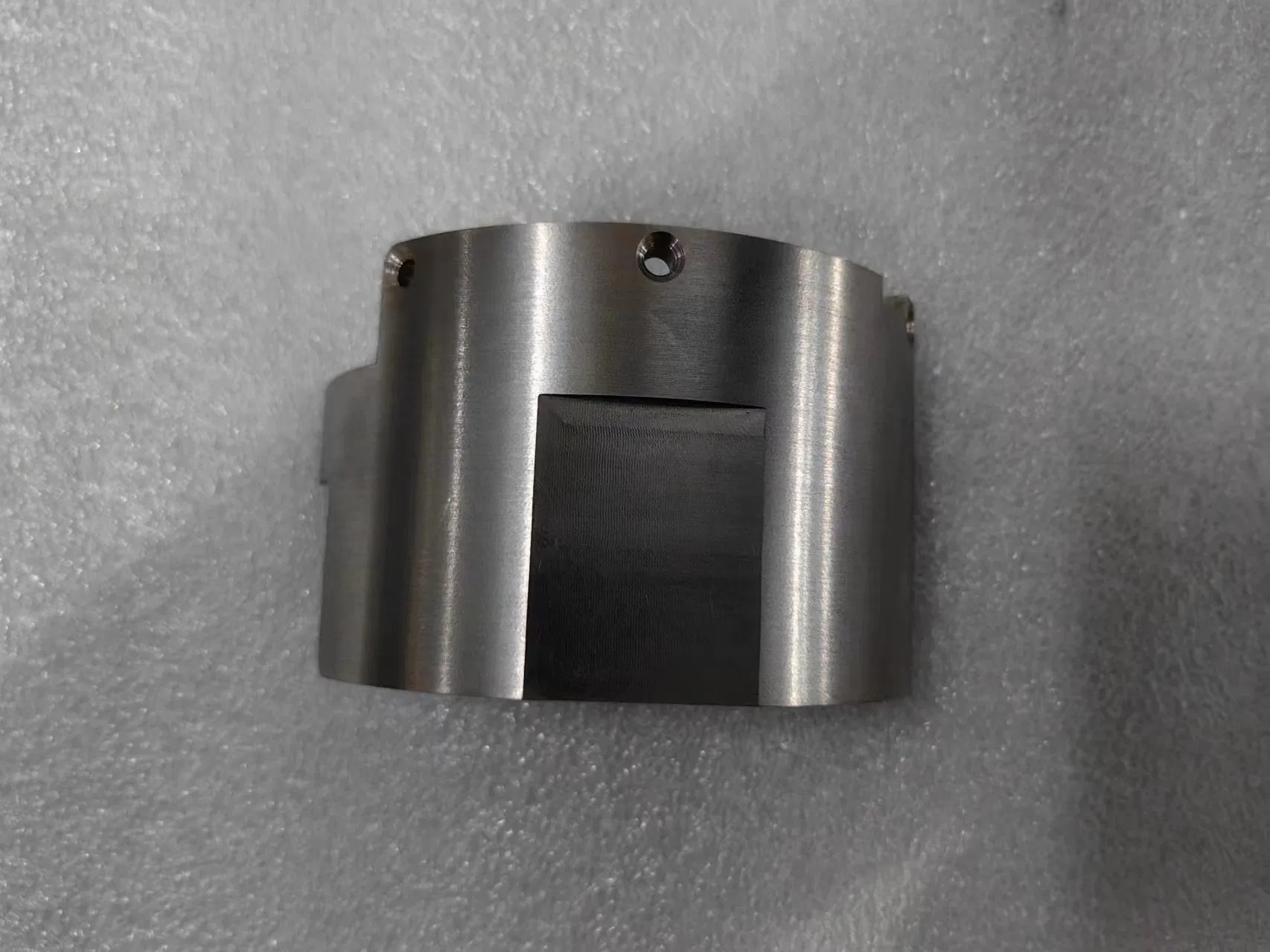

Tungsten Transport Container Syringe Shield Medical Parts

1 / 5

Tungsten Transport Container Syringe Shield Medical Parts

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

ℹ️

Basic Information

Model NO.:

TS007

Purity:

90%~97%

Alloy:

Wnife Wnicu Alloys

Shape:

Customized

Type:

Parts

Density G/Cc:

16.85~18.85

Quality:

ASTM B 777, AMS-T-21014

Supply State:

Sintering

Capacity:

5000kgs Per Month

HS Code:

9022909090

🛡️

Product Description

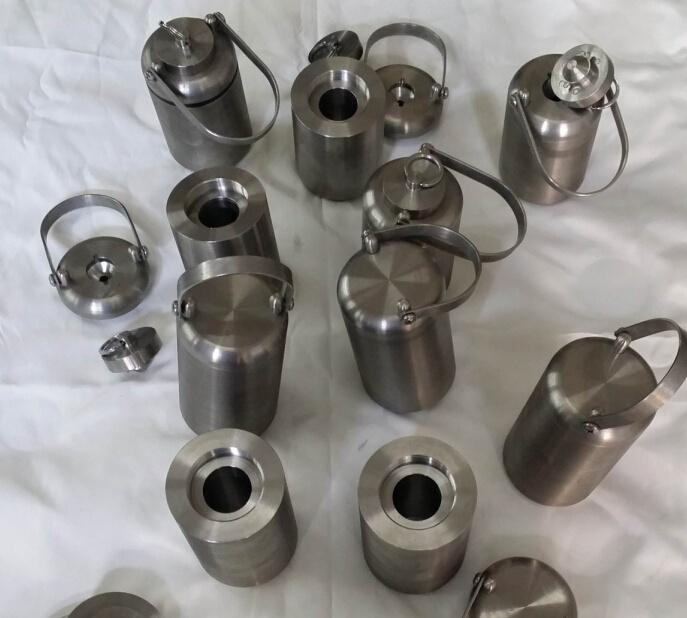

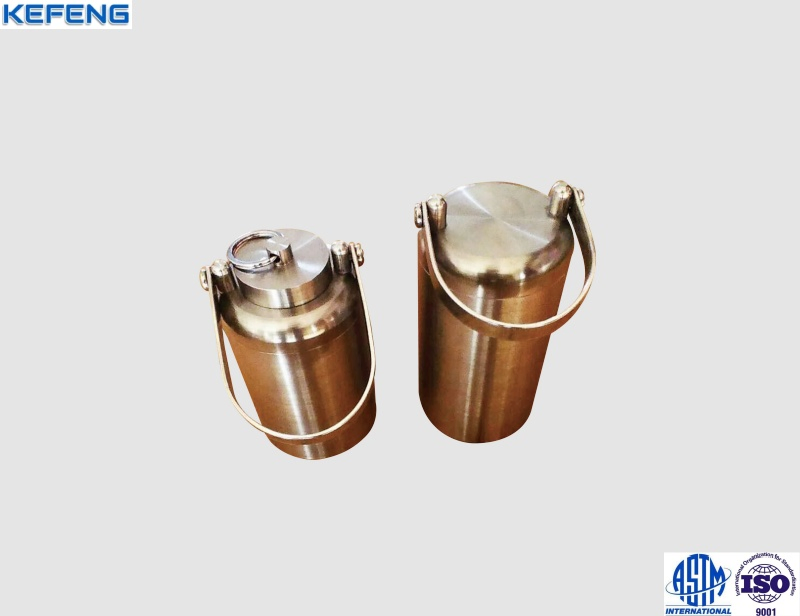

Tungsten Transport Container Syringe Shield Medical Parts are specialized injection shields designed to significantly reduce hand exposure to radioactive materials during medical procedures. With exceptional radiation shielding capabilities, the barrel thickness of the tungsten syringe shield typically ranges from 1.5mm to 2.0mm. These components can reduce radiation exposure from Tc-99m by more than 99%.

High Density Machinable Tungsten Alloy custom semi-finished parts are supplied to meet international standards including ASTM-B-777 Class 1-4, MIL-T-21014, and AMS-T-21014. Custom grades are available upon request to meet specific customer requirements.

Alloys ranging from 90% to 97% Tungsten are available, containing nickel, copper, or iron binders for applications requiring both high density and excellent machinability. Both magnetic and non-magnetic options can be provided.

⚙️

Characteristics & Features

◈High Density & Radiation Absorption

◈Low Thermal Expansion Coefficient

◈High Thermal and Electrical Conductivity

◈Superior Mechanical Properties

◈High Arc & Wear Resistance

◈Non-Toxic and Harmless to Health

📊

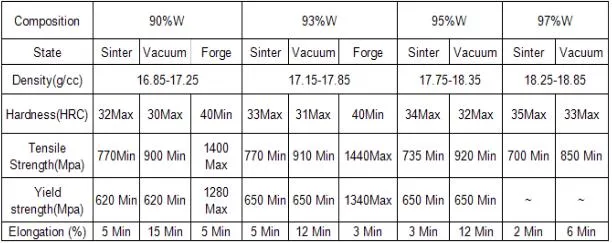

Product Parameters

Alloy Type	WNiFe (ASTM B777)				WNiCu (ASTM B777)
Designation	90W	93W	95W	97W	90W	93W	95W
Density (g/cm³)	16.85-17.3	17.15-17.85	17.75-18.35	18.25-18.85	16.85-17.3	17.15-17.85	17.75-18.35
Tensile (MPa)	758Min	758Min	724Min	689Min	648Min	648Min	648Min
Hardness (HRC)	32Max	33Max	34Max	35Max	32Max	33Max	34Max

📦

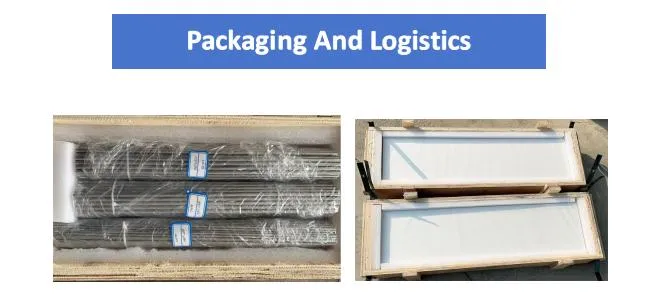

Packaging & Shipping

Due to their weight and fragile nature, tungsten medical parts require careful handling. Standard packaging involves secure wooden crates to ensure protection during international transportation.

◈ Product Forms: Available as semi-finished or finished products per drawings. Lead-free and environmentally friendly.

◈ Reliability: All shipments include internal Test Reports for physical and chemical properties.

◈ Lead Time: Standard production 15-30 days depending on complexity and quantity.

📸

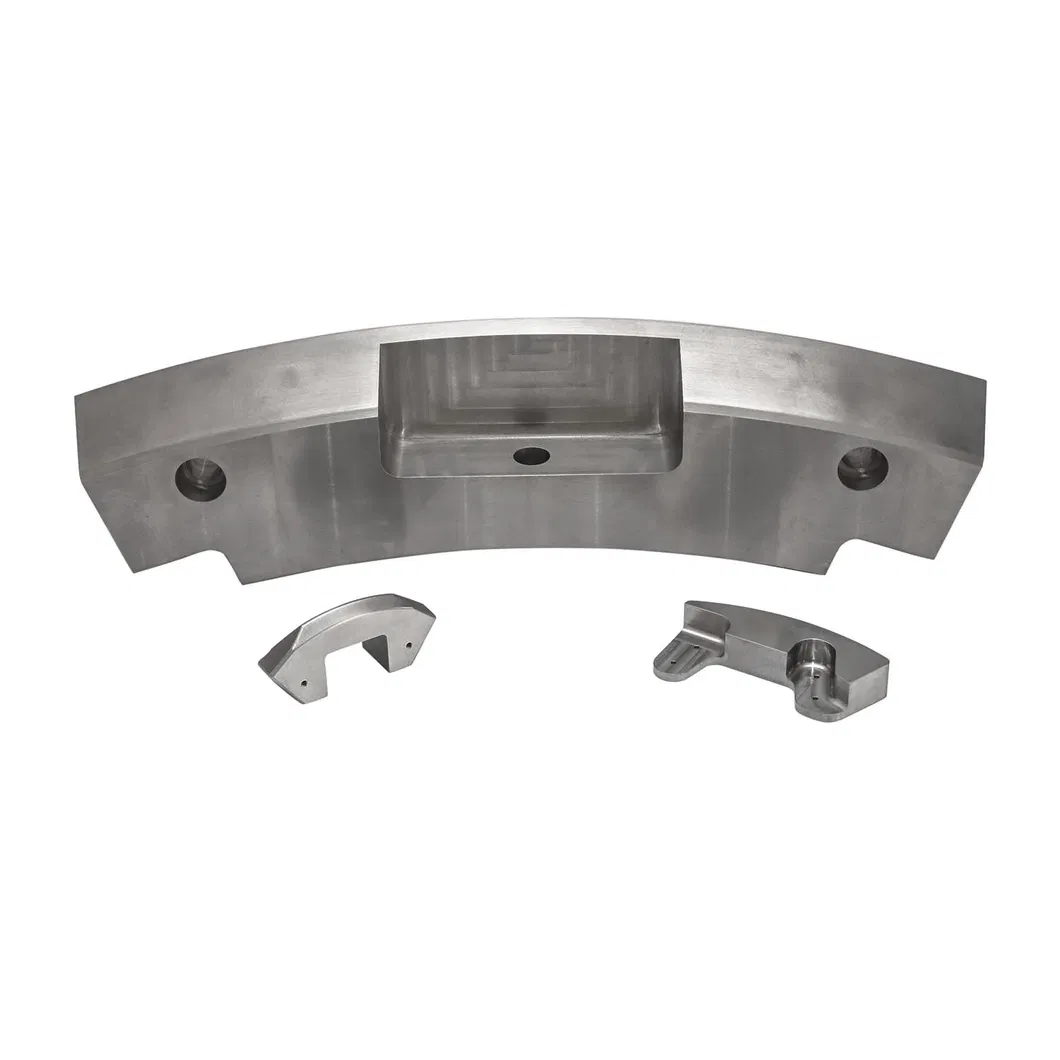

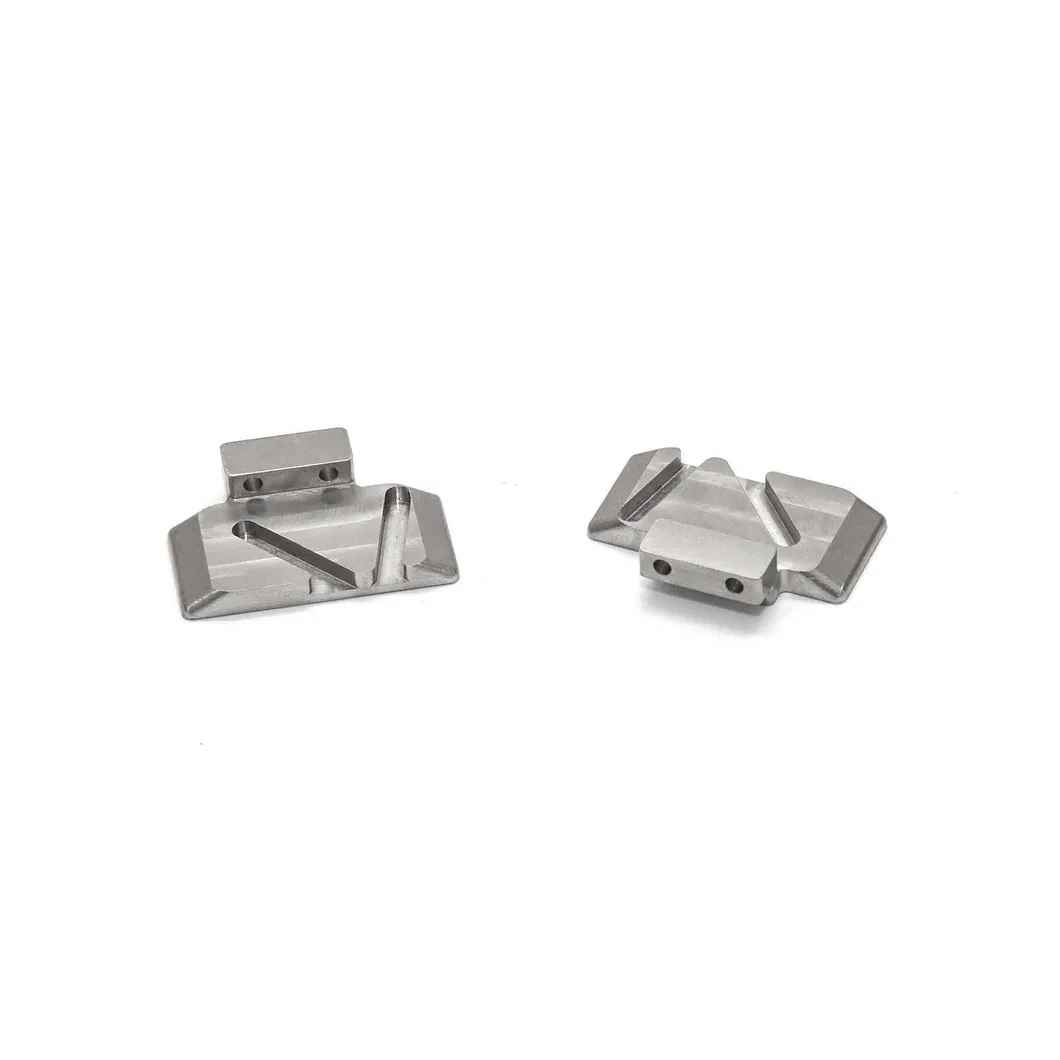

Detailed Photos

❓

Frequently Asked Questions

1. How much radiation can the tungsten syringe shield block?

The tungsten syringe shield is highly effective, capable of reducing radiation exposure from Tc-99m by more than 99% with a wall thickness of only 1.5mm to 2.0mm.

2. What are the main benefits of using Tungsten Alloy over lead?

Tungsten alloy offers much higher density than lead, providing better shielding in a smaller volume. Additionally, it is non-toxic and environmentally friendly, meeting modern safety requests.

3. Can these parts be customized to specific dimensions?

Yes, we provide fully customized services. Parts can be manufactured as semi-finished or finished products according to your specific engineering drawings and technical requirements.

4. What quality standards do your tungsten products adhere to?

Our products typically meet the requirements of ASTM B 777 Class 1-4, AMS-T-21014, and MIL-T-21014. Every shipment is accompanied by a physical and chemical properties test report.

5. What industries utilize these high-density alloys?

Beyond medical radiation shielding, they are used in aerospace (ballast weights), precision instruments (vibrators), oil and gas drilling, and sports equipment (golf club and dart weights).

6. How is the product protected during shipping?

Given the weight and precision of the parts, they are packed in professional export wooden crates with internal foam cushioning to prevent damage during transit.
